0ZCN0200FF2C

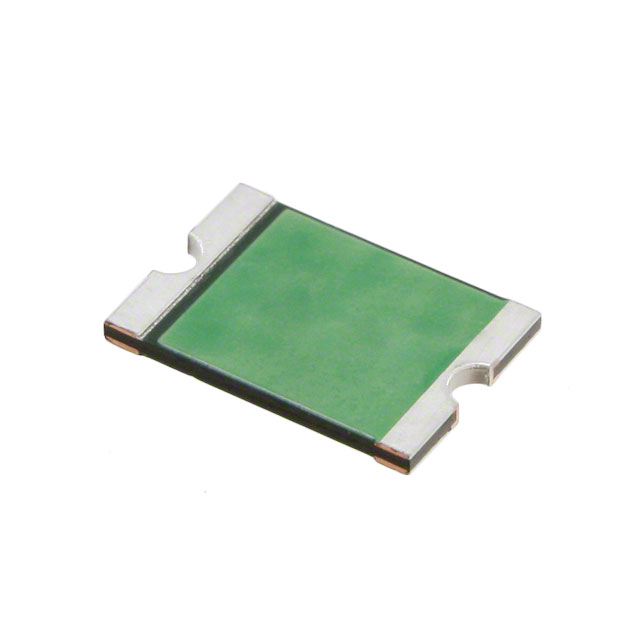

lmages are for reference only.0ZCN0200FF2C
PTC RESET FUSE 6V 2A 2016
Datasheet2016 (5041 Metric), Concave
29,611 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Polymeric PTC Resettable Fuse 6V 2 A Ih Surface Mount 2016 (5041 Metric), Concave
0ZCN0200FF2C
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Bel Fuse Inc. |
| Series | 0ZCN |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Type | Polymeric |
| Voltage - Max | 6V |
| Current - Hold (Ih) (Max) | 2 A |
| Current - Trip (It) | 4.2 A |
| Current - Max | 100 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 2016 (5041 Metric), Concave |
| Size / Dimension | 0.200" L x 0.160" W (5.08mm x 4.07mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.022" (0.55mm) |
| Lead Spacing | - |
| Approval Agency | AEC-Q200, cURus, TUV, UL |
| Time to Trip | 3 s |
| Resistance - Initial (Ri) (Min) | 48 mOhms |
| Resistance - Post Trip (R1) (Max) | 100 mOhms |
| Grade | Automotive |
| Qualification | AEC-Q200 |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 0ZAF0005FF28 | 0ZAF0008FF28 | 0ZAF0012FF28 | 0ZAF0013FF28 |
| Manufacturer | Bel Fuse Inc. | Bel Fuse Inc. | Bel Fuse Inc. | Bel Fuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LINE VOLTAGE RATED SURFACE MOUNT | LINE VOLTAGE RATED SURFACE MOUNT | LINE VOLTAGE RATED SURFACE MOUNT | LINE VOLTAGE RATED SURFACE MOUNT |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
