1-1617003-0

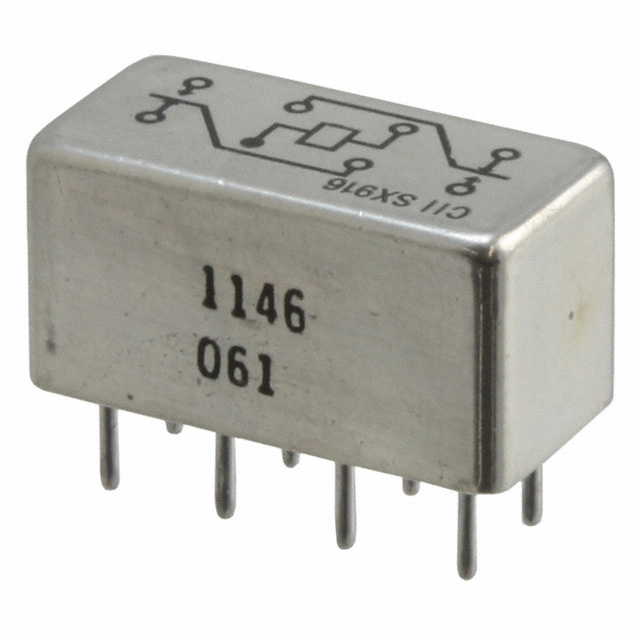

lmages are for reference only.1-1617003-0
B07B635BC1-0867 = 07 RELAY
Datasheet-
94,863 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay DPDT (2 Form C) 26.5VDC Coil Chassis Mount
1-1617003-0
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine |
| Series | 07, CII |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Mounting Type | Chassis Mount |
| Coil Voltage | 26.5VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 115VAC, 28VDC - Nom |
| Load - Max Switching | - |
| Coil Current | 88.3 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Hermetically |
| Coil Insulation | - |
| Must Operate Voltage | 13 VDC |
| Must Release Voltage | 1.8 VDC |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Operating Temperature | -65°C ~ 125°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | - |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 300 Ohms |
| Base Product Number | B07B63 |
| Product Attribute | |
|
|
|
| Part Number | 1-1617002-8 | 1-1617004-6 | 1-1617005-2 | 1-1617005-3 |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | B07A912BC1-0302 = RELAY. | B07D111BC4-0299 = RELAY. | B07Z992BZ1-0044 = RELAY. | B07Z999BZ1-0249 = RELAY. |
| Series | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| Packaging | Bulk | Bulk | Bulk | Bulk |
