1.5KE100AHE3_B/C

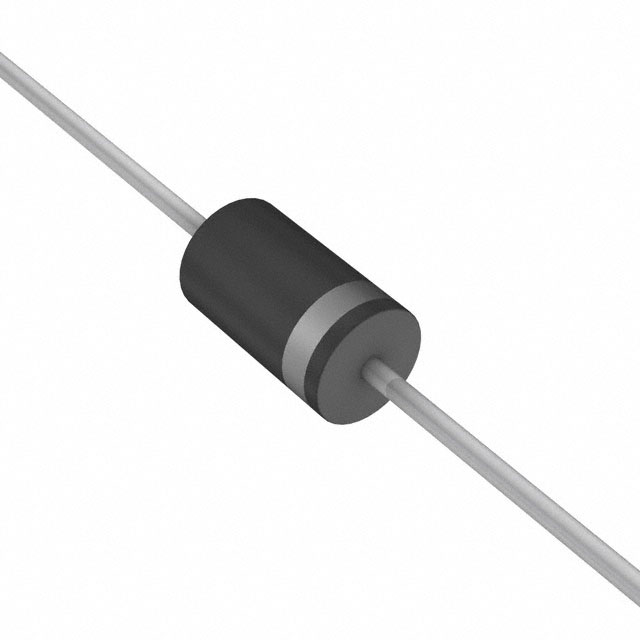

lmages are for reference only.1.5KE100AHE3_B/C
1.5KW,100V 5%,UNIDIR,AXIAL TVS
DatasheetDO-201AA, DO-27, Axial
99,091 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
137V Clamp 11.4A Ipp Tvs Diode Through Hole 1.5KE
1.5KE100AHE3_B/C
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | TransZorb® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 85.5V |
| Voltage - Breakdown (Min) | 95V |
| Voltage - Clamping (Max) @ Ipp | 137V |
| Current - Peak Pulse (10/1000µs) | 11.4A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | Telecom |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial |
| Supplier Device Package | 1.5KE |
| Base Product Number | 1.5KE100 |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
|
|
| Part Number | 1.5KE100AH | 1.5KE10 | 1.5KE10 | 1.5KE10 |
| Manufacturer | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Littelfuse Inc. | Meritek |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 85.5VWM 137VC DO201 | 1500W, 10V, 5%, UNIDIRECTIONAL, | TVS D5.4X7.5 8.1V 1500W UNIDIR | 10VClamp 100A Ipp TVS Diode Thro |
| Series | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Littelfuse Inc. | Meritek |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Strip |
