1.5KE10A/54

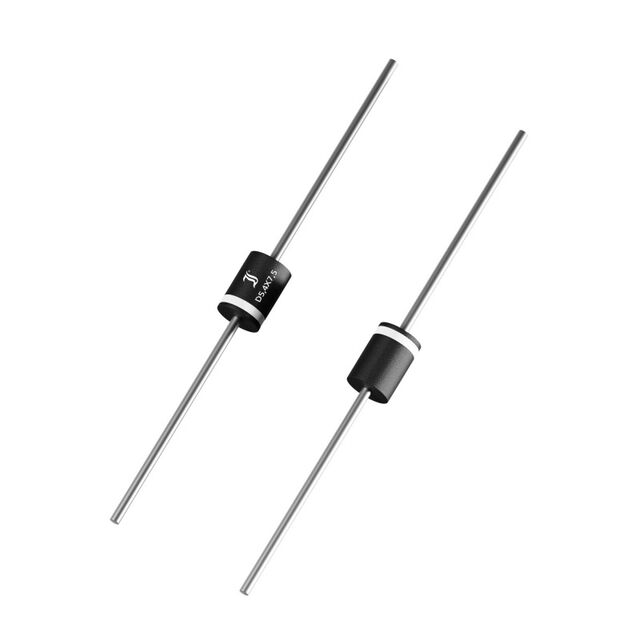

lmages are for reference only.1.5KE10A/54
TVS DIODE 8.55VWM 14.5VC 1.5KE
DatasheetDO-201AA, DO-27, Axial
57,397 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
14.5V Clamp 103A Ipp Tvs Diode Through Hole 1.5KE
1.5KE10A/54
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | TransZorb® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS non-compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 8.55V |
| Voltage - Breakdown (Min) | 9.5V |
| Voltage - Clamping (Max) @ Ipp | 14.5V |
| Current - Peak Pulse (10/1000µs) | 103A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial |
| Supplier Device Package | 1.5KE |
| Base Product Number | 1.5KE10 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
|
| Part Number | 1.5KE10A | 1.5KE10A | 1.5KE10A | 1.5KE10A |
| Manufacturer | SMC Diode Solutions | STMicroelectronics | Meritek | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 8.55VWM 14.5VC DO201AD | TVS D5.4X7.5 8.5V 1500W UNIDIR | 14.5V Clamp 104.8A Ipp TVS Diode | TVS 1500W 10V 5% UNIDIR DO-201 |
| Series | SMC Diode Solutions | STMicroelectronics | Meritek | Taiwan Semiconductor Corporation |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) | Strip | Tape & Reel (TR) |
