1.5KE22

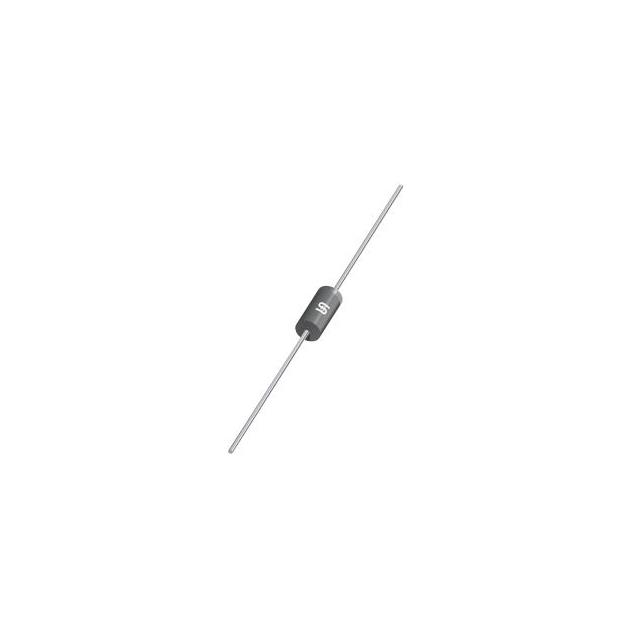

lmages are for reference only.1.5KE22
1500W, 22V, 10%, UNIDIRECTIONAL,
DatasheetDO-201AA, DO-27, Axial
23,183 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
31.9V Clamp 49A Ipp Tvs Diode Through Hole DO-201
1.5KE22
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | 1.5KE |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 17.8V |
| Voltage - Breakdown (Min) | 19.8V |
| Voltage - Clamping (Max) @ Ipp | 31.9V |
| Current - Peak Pulse (10/1000µs) | 49A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial |
| Supplier Device Package | DO-201 |
| Base Product Number | 1.5KE22 |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
|
|
 |
| Part Number | 1.5KE20 | 1.5KE20 | 1.5KE20 | 1.5KE20-B |
| Manufacturer | Littelfuse Inc. | Taiwan Semiconductor Corporation | Meritek | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS D5.4X7.5 16.2V 1500W UNIDIR | 1500W, 20V, 10%, UNIDIRECTIONAL, | 20V, Clamp 51.55A Ipp TVS Diode | TVS DIODE 17.1VWM 29.09VC DO201 |
| Series | Littelfuse Inc. | Taiwan Semiconductor Corporation | Meritek | Littelfuse Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Strip | Bulk |
