Product CatalogPart Number
1.5KE36CA-AT/TR13
Manufacturer
YAGEODescription
TVS DO-201 30.8V 49.9V AUT
Datasheet
DatasheetPackage
DO-201AA, DO-27, Axial
In Stock
87,089 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

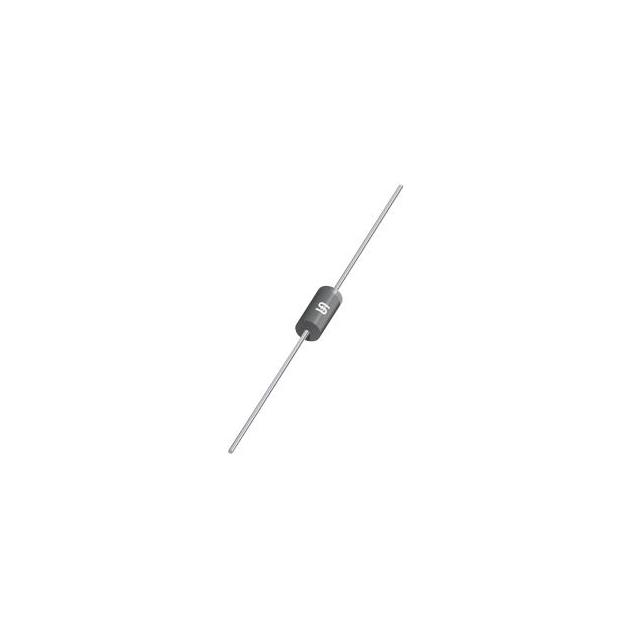

1.5KE36CA-AT/TR13
1.5KE36CA-AT/TR13
lmages are for reference only.Payment Methods
Delivery Services
49.9V Clamp 30.5A Ipp Tvs Diode Through Hole DO-201
Quick Inquiry
1.5KE36CA-AT/TR13
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | YAGEO |
| Series | 1.5KE-AT |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 30.8V |
| Voltage - Breakdown (Min) | 34.2V |
| Voltage - Clamping (Max) @ Ipp | 49.9V |
| Current - Peak Pulse (10/1000µs) | 30.5A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial |
| Supplier Device Package | DO-201 |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |
| Part Number | 1.5KE36CA-AT/B | 1.5KE36 | 1.5KE36 | 1.5KE36-B |
| Manufacturer | YAGEO | Littelfuse Inc. | Taiwan Semiconductor Corporation | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DO-201 30.8V 49.9V AUT | TVS D5.4X7.5 29.1V 1500W UNIDIR | 1500W, 36V, 10%, UNIDIRECTIONAL, | TVS DIODE 30.8VWM 52.4VC DO201 |
| Series | YAGEO | Littelfuse Inc. | Taiwan Semiconductor Corporation | Littelfuse Inc. |
| Packaging | Tape & Box (TB) | Tape & Reel (TR) | Tape & Reel (TR) | Bulk |
