Product CatalogPart Number
1.5KE480A
Manufacturer
Littelfuse Inc.Description
TVS DIODE 408VWM 658VC DO201
Datasheet
DatasheetPackage
DO-201AA, DO-27, Axial
In Stock
18,145 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
1.5KE480A
1.5KE480A

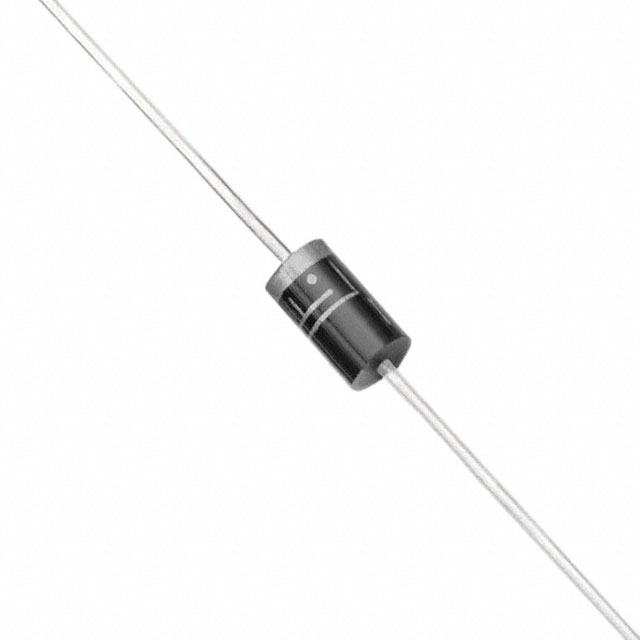

lmages are for reference only.Payment Methods
Delivery Services
658V Clamp 2.3A Ipp Tvs Diode Through Hole DO-201
Quick Inquiry
1.5KE480A
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Littelfuse Inc. |
| Series | 1.5KE |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 408V |
| Voltage - Breakdown (Min) | 456V |
| Voltage - Clamping (Max) @ Ipp | 658V |
| Current - Peak Pulse (10/1000µs) | 2.3A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial |
| Supplier Device Package | DO-201 |
| Base Product Number | 1.5KE |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|
| Part Number | 1.5KE480 | 1.5KE480-B | 1.5KE480-E3/54 | 1.5KE480A |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Vishay General Semiconductor - Diodes Division | SMC Diode Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 408VWM 690.9VC DO201 | TVS DIODE 408VWM 690.9VC DO201 | TVS DIODE 389VWM 686VC 1.5KE | TVS DIODE DO201AD |
| Series | Littelfuse Inc. | Littelfuse Inc. | Vishay General Semiconductor - Diodes Division | SMC Diode Solutions |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Tape & Reel (TR) |
