1.5KE8.2
lmages are for reference only.1.5KE8.2
1500W, 8.2V, 10%, UNIDIRECTIONAL
DatasheetDO-201AA, DO-27, Axial
44,104 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
12.5V Clamp 126A Ipp Tvs Diode Through Hole DO-201
1.5KE8.2
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | 1.5KE |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 6.63V |
| Voltage - Breakdown (Min) | 7.38V |
| Voltage - Clamping (Max) @ Ipp | 12.5V |
| Current - Peak Pulse (10/1000µs) | 126A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial |
| Supplier Device Package | DO-201 |
| Base Product Number | 1.5KE8.2 |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute | |
|
 |
 |

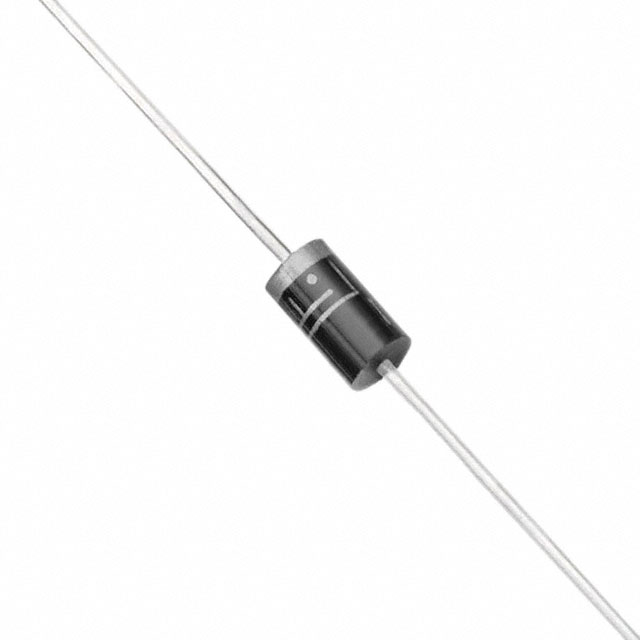

| Part Number | 1.5KE8.2 | 1.5KE8.2 | 1.5KE8.2-B | 1.5KE8.2-E3/54 |
| Manufacturer | Littelfuse Inc. | Meritek | Littelfuse Inc. | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS D5.4X7.5 6.6V 1500W UNIDIR | 11.3V Clamp 120A Ipp TVS Diode | TVS DIODE 7.02VWM 12.71VC DO201 | TVS DIODE 6.63VWM 12.5VC 1.5KE |
| Series | Littelfuse Inc. | Meritek | Littelfuse Inc. | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR) | Strip | Bulk | Tape & Reel (TR) |
