1.5KE9.1C-E3/54

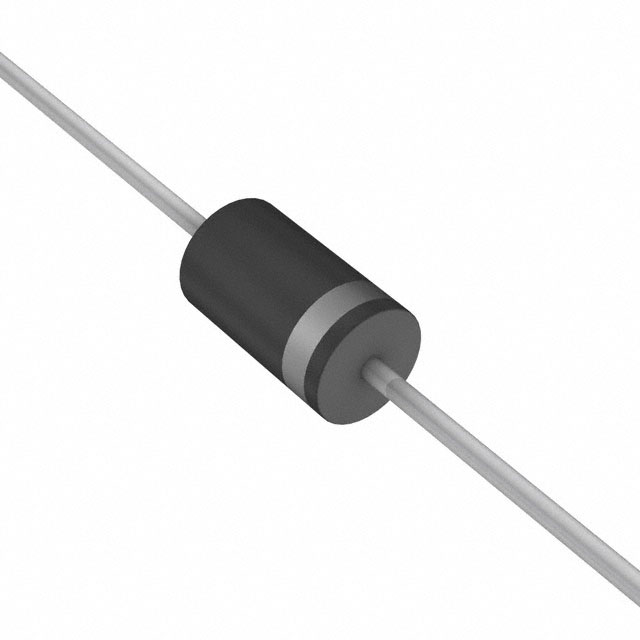

lmages are for reference only.1.5KE9.1C-E3/54
TVS DIODE 7.37VWM 13.8VC 1.5KE
DatasheetDO-201AA, DO-27, Axial
23,523 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
13.8V Clamp 109A Ipp Tvs Diode Through Hole 1.5KE
1.5KE9.1C-E3/54
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | TransZorb® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 7.37V |
| Voltage - Breakdown (Min) | 8.19V |
| Voltage - Clamping (Max) @ Ipp | 13.8V |
| Current - Peak Pulse (10/1000µs) | 109A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial |
| Supplier Device Package | 1.5KE |
| Base Product Number | 1.5KE9.1 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 1.5KE9.1C-E3/73 | 1.5KE9.1C | 1.5KE9.1C-B | 1.5KE9.1CA |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Taiwan Semiconductor Corporation | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 7.37VWM 13.8VC 1.5KE | 1500W, 9.1V, 10%, BIDIRECTIONAL, | TVS DIODE 7.78VWM 14.07VC DO201 | TVS D5.4X7.5 7.7V 1500W BIDIR |
| Series | Vishay General Semiconductor - Diodes Division | Taiwan Semiconductor Corporation | Littelfuse Inc. | Littelfuse Inc. |
| Packaging | Tape & Box (TB) | Tape & Reel (TR) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
