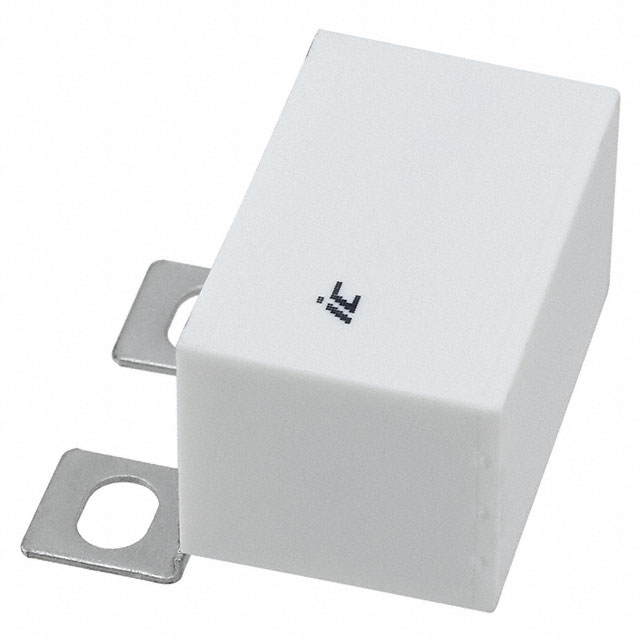

105PMB850KSP2
lmages are for reference only.105PMB850KSP2
CAP FILM 1UF 10% 850VDC SCREW
DatasheetRectangular Box
89,604 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 µF Film Capacitor 450V 850V Polypropylene (PP), Metallized Rectangular Box
105PMB850KSP2
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | PMB |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 1 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 450V |
| Voltage Rating - DC | 850V |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 1.673" L x 0.965" W (42.50mm x 24.50mm) |
| Height - Seated (Max) | 1.083" (27.50mm) |
| Termination | Screw Terminals |
| Lead Spacing | 0.433" (11.00mm) |
| Applications | DC Link, DC Filtering; High Frequency, Switching; Snubber |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | 2.7 mOhms |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |

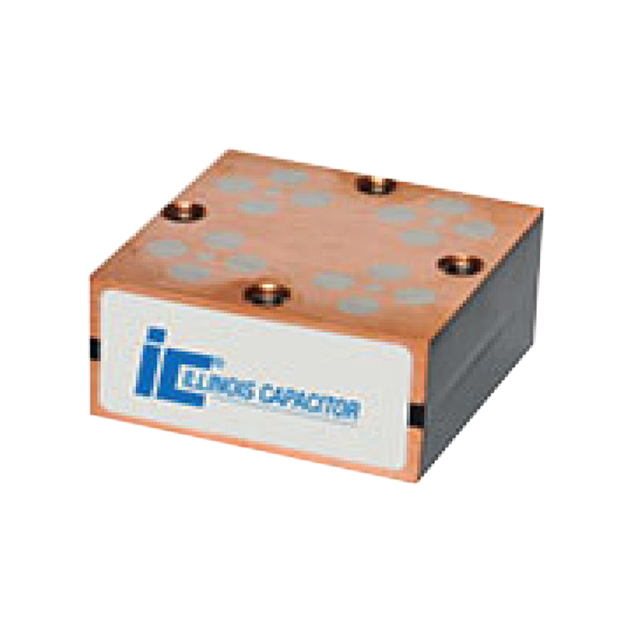

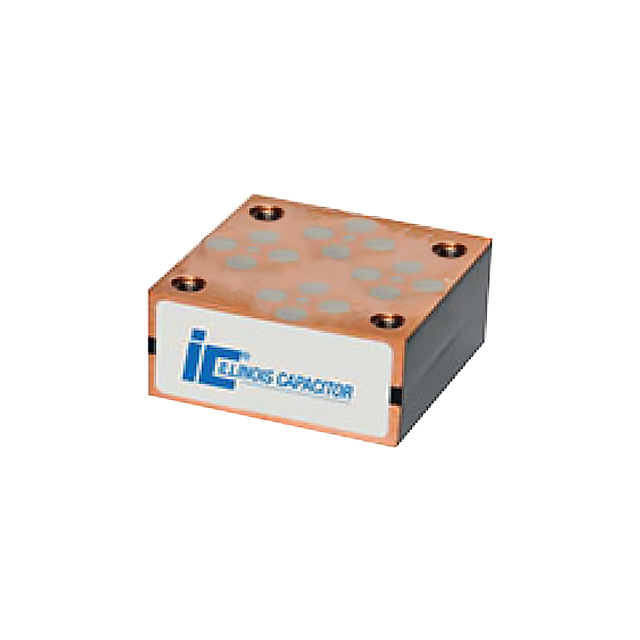

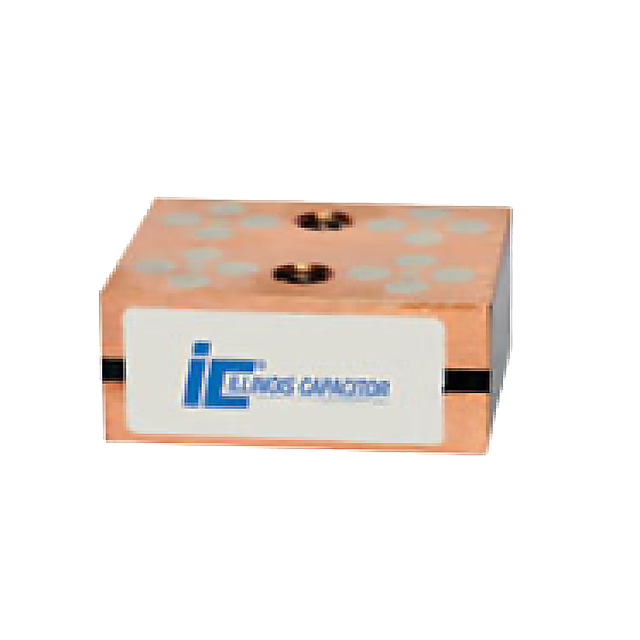

| Part Number | 105HC3600K2EM8 | 105HC3600K4TM6 | 105HC3600K4TM6 | 105HC3600K4VM6 |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 1UF 10% 600VAC CHAS MT | CAP FILM 1UF 10% 600VAC CHAS MT | CAP FILM 1UF 10% 600VAC CHAS MT | CAP FILM 1UF 10% 600VAC CHAS MT |
| Series | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| Packaging | Bulk | Bulk | Bulk | Bulk |
