108UER016MGU
lmages are for reference only.108UER016MGU
CAP ALUM POLY 1000UF 20% 16V TH
DatasheetRadial, Can
21,270 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1000 µF 16 V Aluminum - Polymer Capacitors Radial, Can 11mOhm 5000 Hrs @ 105°C
108UER016MGU
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | UER |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Polymer |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 11mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | Decoupling |
| Ripple Current @ Low Frequency | 280 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5.6 A @ 100 kHz |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | - |
| Features | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |

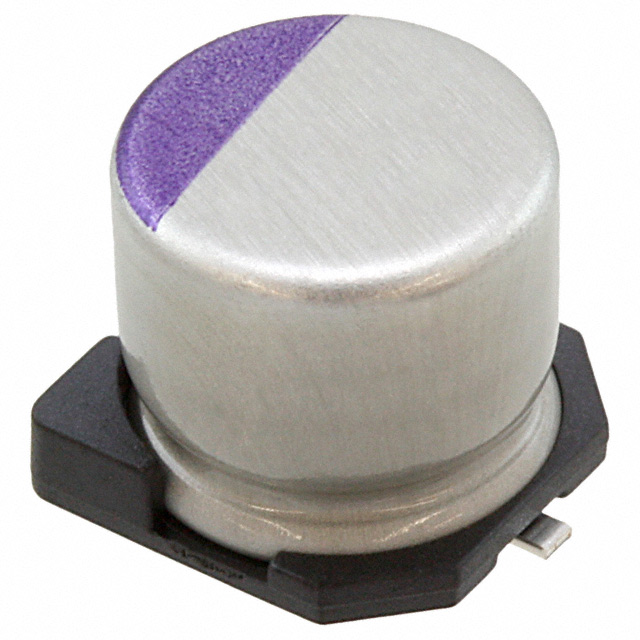

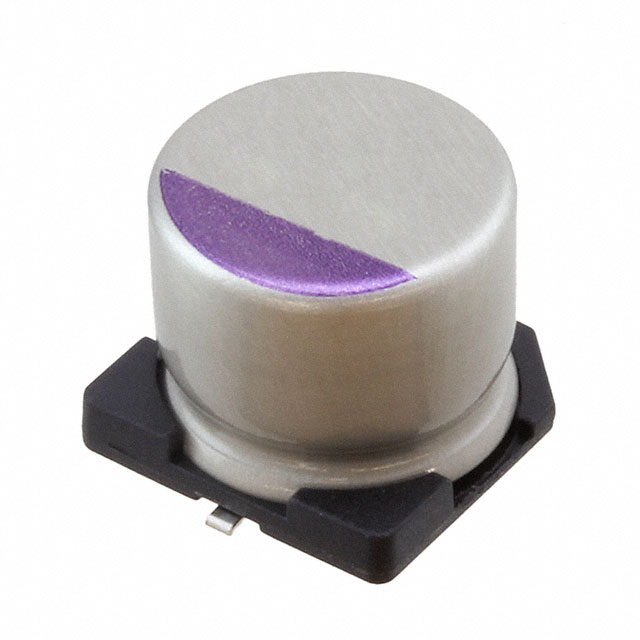

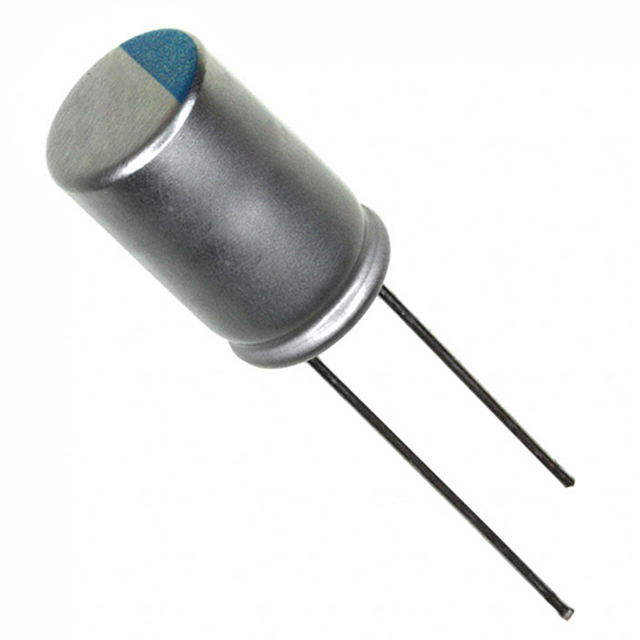

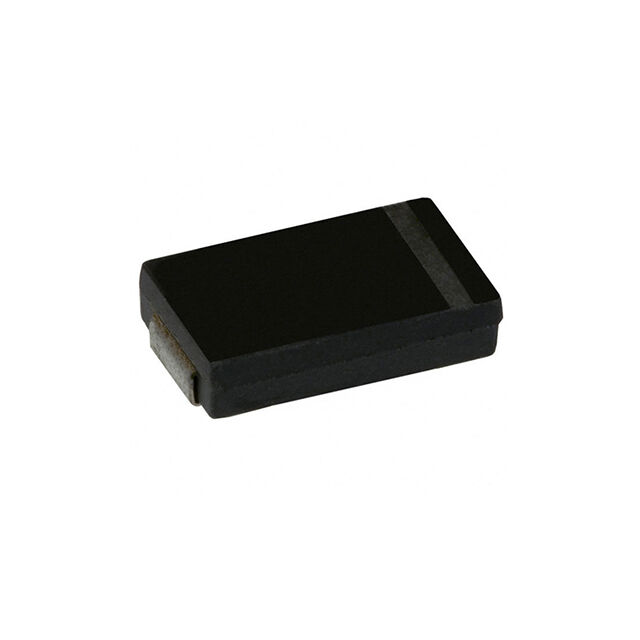

| Part Number | 106XMPL6R3MG19 | 107ULG035MGU | 100SXV18MX | 10SVP56M |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM POLY 10UF 20% 6.3V SMD | CAP ALUM POLY 100UF 20% 35V TH | CAP ALUM POLY 18UF 20% 100V SMD | CAP ALUM POLY 56UF 20% 10V SMD |
| Series | XMPL | ULG | OS-CON™, SXV | OS-CON™, SVP |
| Packaging | Bulk | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
