12402056E512A
lmages are for reference only.12402056E512A
USB4.0 GEN3, TYPE C, TOP MOUNT,
Datasheet-
16,970 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
USB-C (USB TYPE-C) USB 4.0 Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole
12402056E512A
| Category | Connectors, Interconnects - USB-DVI-HDMI Connectors - USB-DVI-HDMI Connector Assemblies |
| Manufacturer | Amphenol ICC (Commercial Products) |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Connector Type | USB-C (USB TYPE-C) |
| Number of Contacts | 24 |
| Gender | Receptacle |
| Specifications | USB 4.0 |
| Mounting Type | Surface Mount, Right Angle; Through Hole |
| Mounting Feature | Horizontal |
| Termination | Solder |
| Features | - |
| Ingress Protection | - |
| Operating Temperature | -40°C ~ 85°C |
| Number of Ports | 1 |
| Current Rating (Amps) | 5A |
| Voltage - Rated | - |
| Mating Cycles | 10000 |
| Shielding | Shielded |
| Contact Finish | Gold |
| Shell/Shielding Material | Steel, Stainless |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | - |
| Base Product Number | 1240205 |
| Product Attribute |  |
 |
|
|

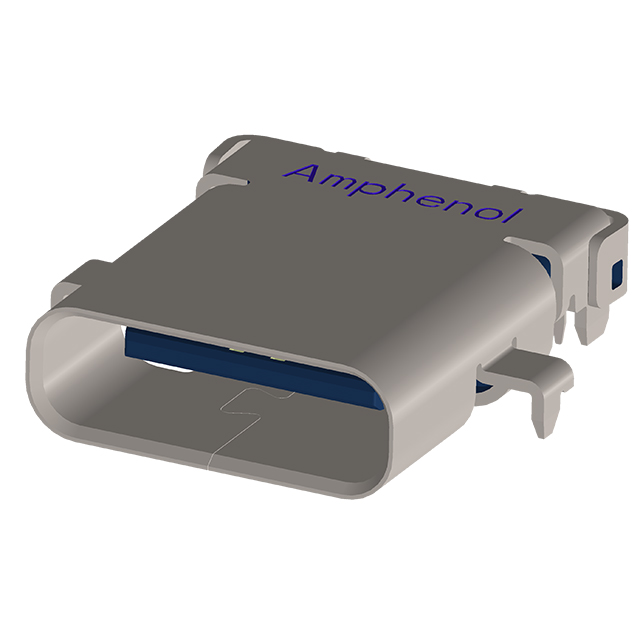

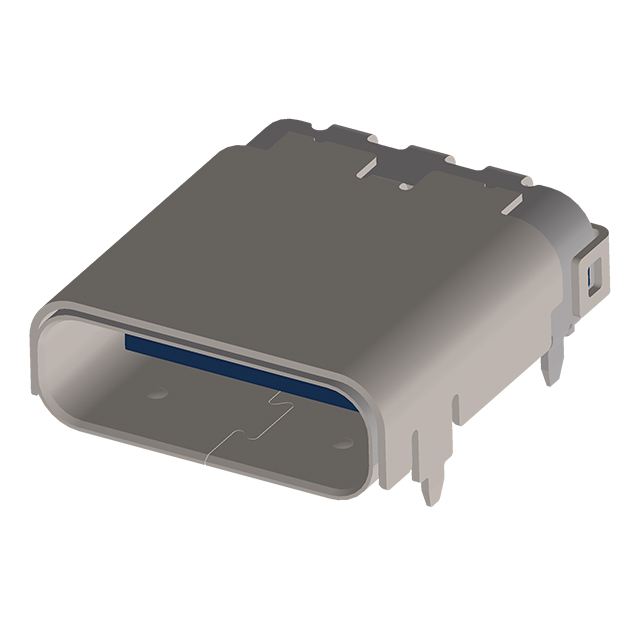

| Part Number | 12402054M611A | 12401544E4#2A | 12401548E4#2A | 12401548E412A |
| Manufacturer | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | CONN RCPT USB2.0 TYPE C 24POS RA | CONN RCPT USB3.1 TYPEC 24POS SMD | CONN RCP USB3.1 TYPEC 24P SMD RA | USB3.2 GEN2, TYPE C, TOP MOUNT, |
| Series | - | - | - | - |
| Packaging | Tray | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
