12402076E512A
lmages are for reference only.12402076E512A
USB4 GEN3, TYPE C, TOP MOUNT, CE
Datasheet-
68,884 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
USB-C (USB TYPE-C) USB 4.0 Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole
12402076E512A
| Category | Connectors, Interconnects - USB-DVI-HDMI Connectors - USB-DVI-HDMI Connector Assemblies |
| Manufacturer | Amphenol ICC (Commercial Products) |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Connector Type | USB-C (USB TYPE-C) |
| Number of Contacts | 24 |
| Gender | Receptacle |
| Specifications | USB 4.0 |
| Mounting Type | Surface Mount, Right Angle; Through Hole |
| Mounting Feature | Horizontal |
| Termination | Solder |
| Features | - |
| Ingress Protection | - |
| Operating Temperature | -40°C ~ 85°C |
| Number of Ports | 1 |
| Current Rating (Amps) | 5A |
| Voltage - Rated | 20V |
| Mating Cycles | 10000 |
| Shielding | Shielded |
| Contact Finish | Gold |
| Shell/Shielding Material | Steel, Stainless |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

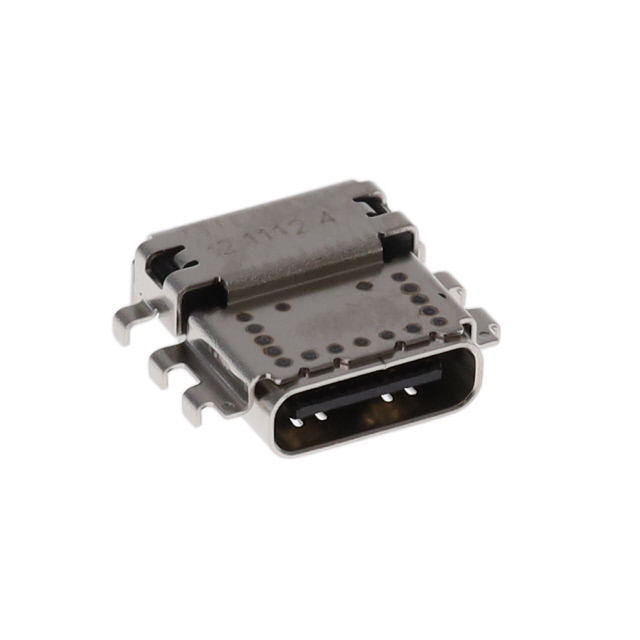

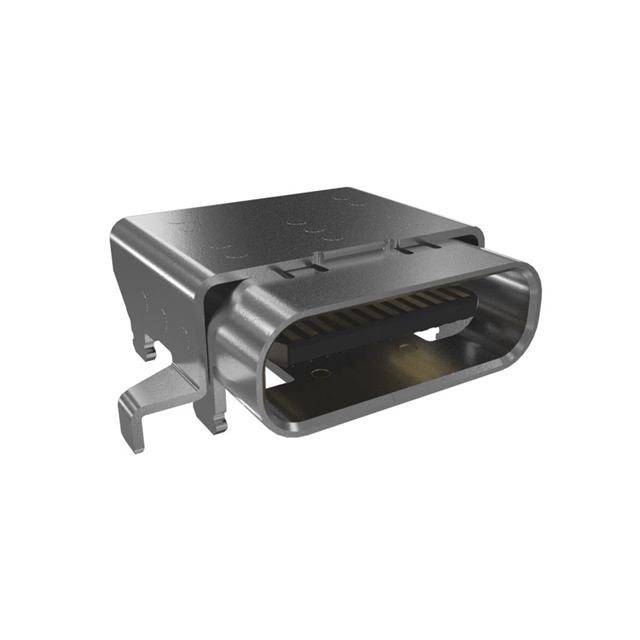

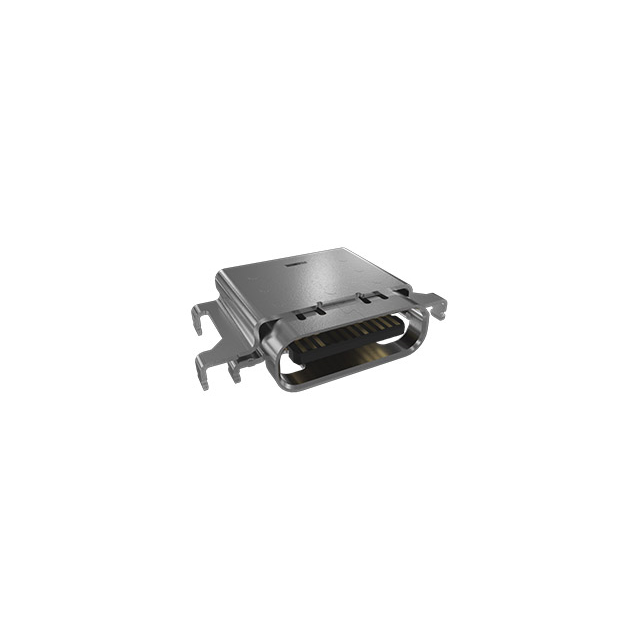

| Part Number | 12402072E512A | 12402073E512A | 12402075E512A | 12401544E4#2A |
| Manufacturer | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | USB4 GEN3, TYPE C, MID MOUNT, CE | USB4 GEN3, TYPE C, TOP MOUNT, CE | USB4.0 GEN3, TYPE C, MID MOUNT, | CONN RCPT USB3.1 TYPEC 24POS SMD |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
