1462042-1
lmages are for reference only.1462042-1
RELAY TELECOM SPDT 2A 3V
Datasheet-
75,757 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Telecom Relay SPDT (1 Form C) Surface Mount
1462042-1
| Category | Relays - Signal Relays-Up to 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | IM, AXICOM |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Coil Voltage | 3VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 2 A |
| Switching Voltage | 250VAC, 220VDC - Max |
| Load - Max Switching | 500VA, 440W |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Gull Wing |
| Seal Rating | Sealed - Hermetically |
| Coil Insulation | - |
| Must Operate Voltage | 2.25 VDC |
| Must Release Voltage | 0.3 VDC |
| Operate Time | 3 ms |
| Release Time | 3 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Palladium (Pd), Ruthenium (Ru), Gold (Au) |
| Approval Agency | UR |
| Relay Type | Telecom |
| Grade | - |
| Qualification | - |
| Base Product Number | 1462042 |
| Coil Current | 47 mA |
| Coil Resistance | 64 Ohms |
| Product Attribute |  |
 |
 |
 |

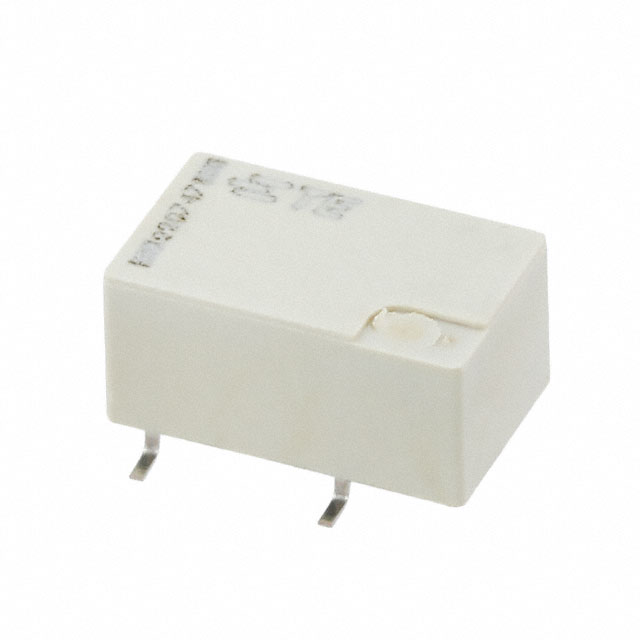

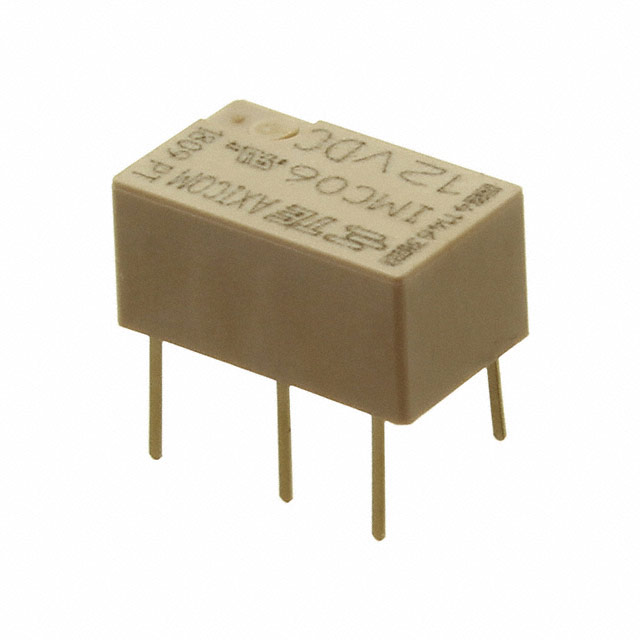

| Part Number | 1462042-2 | 1462042-3 | 1462042-6 | 1462042-7 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY TELECOM SPDT 2A 4.5V | RELAY TELECOM SPDT 2A 12V | RELAY TELECOM SPDT 2A 12V | RELAY TELECOM SPDT 2A 5V |
| Series | IM, AXICOM | IM, AXICOM | IM, AXICOM | IM, AXICOM |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube |
