1810LP07A0200001T
lmages are for reference only.1810LP07A0200001T
RF FILTER LOW PASS 1.81GHZ 0402
Datasheet0402 (1005 Metric), 4 PC Pad
89,230 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.81GHz Center Frequency Low Pass RF Filter (Radio Frequency) 200MHz Bandwidth 0.5dB 0402 (1005 Metric), 4 PC Pad
1810LP07A0200001T
| Category | Filters - RF Filters - |
| Manufacturer | Johanson Technology Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Frequency | 1.81GHz Center |
| Bandwidth | 200MHz |
| Filter Type | Low Pass |
| Ripple | - |
| Insertion Loss | 0.5dB |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric), 4 PC Pad |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height (Max) | 0.017" (0.43mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

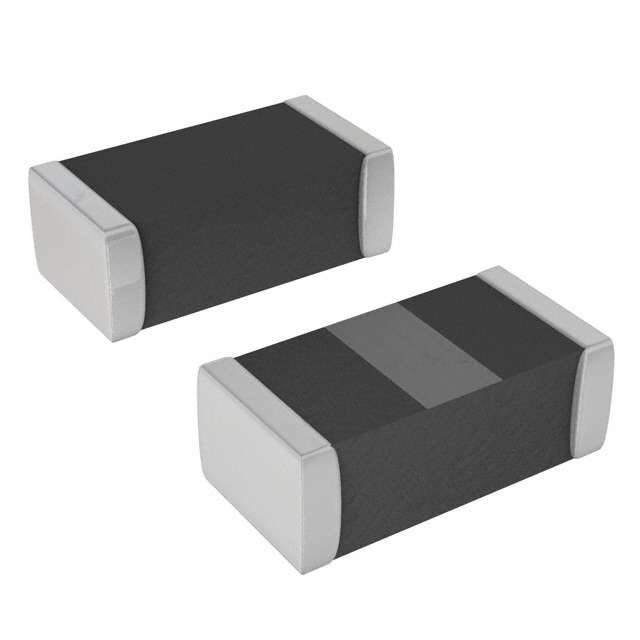

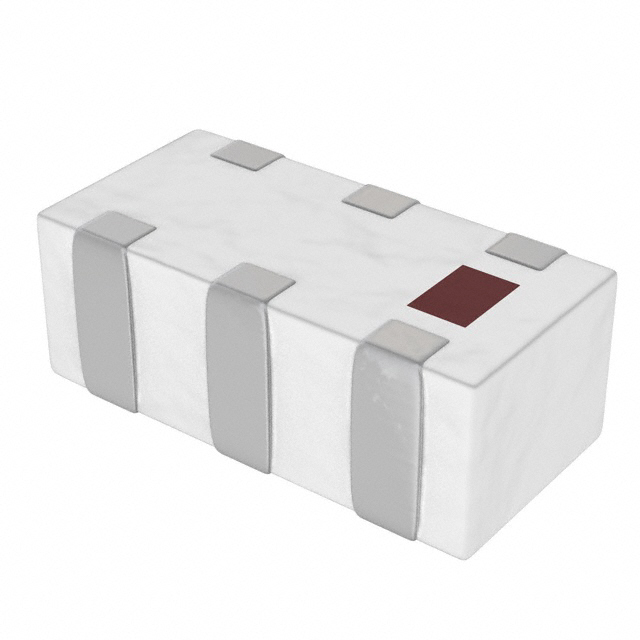

| Part Number | 1810LP14A200001T | 1810BP07B0200001T | BPF2012LRAGR2400L | LP0402N5200ANTR |
| Manufacturer | Johanson Technology Inc. | Johanson Technology Inc. | Pulse Electronics | KYOCERA AVX |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RF FILTER LOW PASS 1.81GHZ 0603 | RF FILTER BAND PASS 1.81GHZ 0402 | 2012 2.4GHZ BPF TYPEAG | RF FILTER LOW PASS 5.2GHZ 0402 |
| Series | - | - | - | LP0402N |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT)--> |
