1810LP14A200001T
lmages are for reference only.1810LP14A200001T
RF FILTER LOW PASS 1.81GHZ 0603
Datasheet0603 (1608 Metric), 6 PC Pad
16,249 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.81GHz Center Frequency Low Pass RF Filter (Radio Frequency) 200MHz Bandwidth 0.6dB 0603 (1608 Metric), 6 PC Pad
1810LP14A200001T
| Category | Filters - RF Filters - |
| Manufacturer | Johanson Technology Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Frequency | 1.81GHz Center |
| Bandwidth | 200MHz |
| Filter Type | Low Pass |
| Ripple | - |
| Insertion Loss | 0.6dB |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric), 6 PC Pad |
| Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.80mm) |
| Height (Max) | 0.028" (0.70mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
|

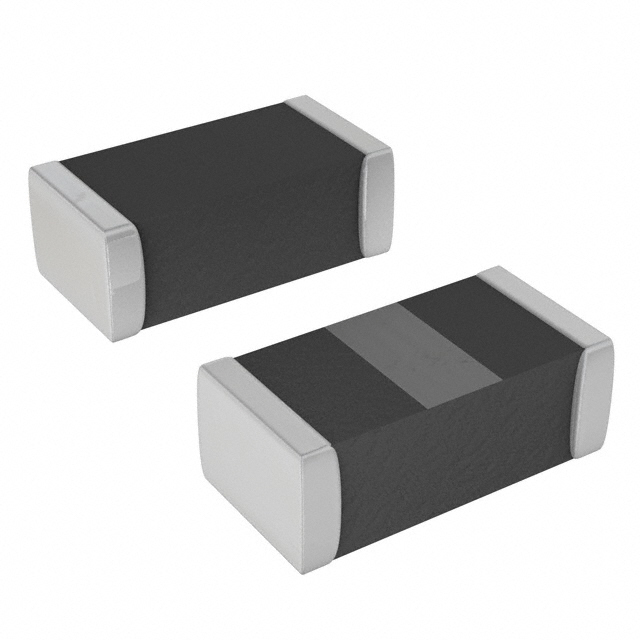

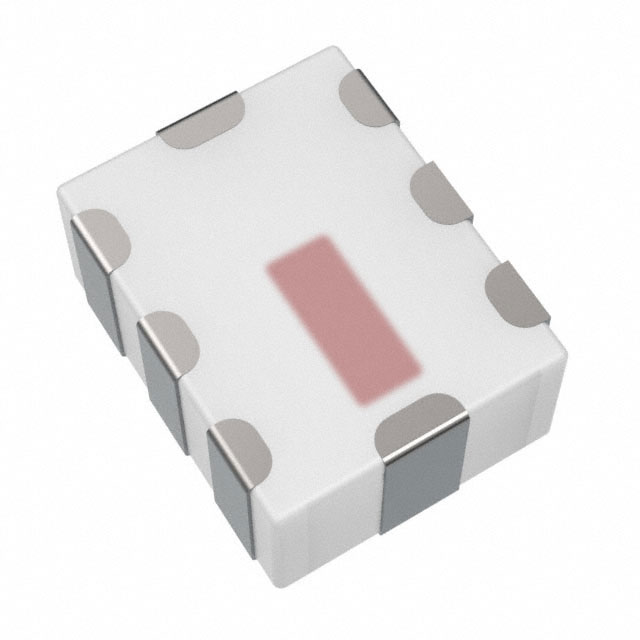

| Part Number | 1810LP07A0200001T | 1200LP41B0500001E | 1000LP41B1000001E | 1200LP41C0500001E |
| Manufacturer | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RF FILTER LOW PASS 1.81GHZ 0402 | RF FILTER LOW PASS 1.2GHZ 1210 | RF FILTER LOW PASS 911.5MHZ 1210 | RF FILTER LOW PASS 1.2GHZ 1210 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR) |
