1N5416 BK TIN/LEAD

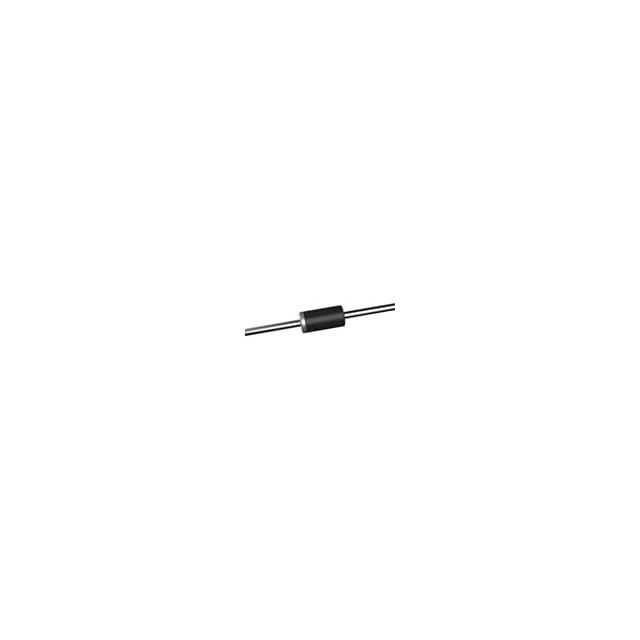

lmages are for reference only.1N5416 BK TIN/LEAD
DIODE GEN PURP 100V 3A GPR-4AM
DatasheetR-4, Axial
25,894 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 100 V 3A Through Hole GPR-4AM
1N5416 BK TIN/LEAD
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Central Semiconductor Corp |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) | 3A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 150 ns |
| Current - Reverse Leakage @ Vr | 1 µA @ 100 V |
| Capacitance @ Vr, F | 175pF @ 12V, 1MHz |
| Mounting Type | Through Hole |
| Package / Case | R-4, Axial |
| Supplier Device Package | GPR-4AM |
| Operating Temperature - Junction | -65°C ~ 200°C |
| Base Product Number | 1N5416 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | 1N5059 | 1N5059GP-E3/54 | 1N5059GPHE3/54 | 1N5059TAP |
| Manufacturer | Diotec Semiconductor | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE GEN PURP 200V 2A DO204AC | DIODE GEN PURP 200V 1A DO204AC | DIODE GEN PURP 200V 1A DO204AC | DIODE AVALANCHE 200V 2A SOD57 |
| Series | - | SUPERECTIFIER® | SUPERECTIFIER® | - |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Box (TB) |
