Product CatalogPart Number
2334570-4
Manufacturer
TE Connectivity AMP ConnectorsDescription
MBPLUS,R/A,REC.,SOLDER,5LP + 24S
Datasheet
DatasheetPackage
-
In Stock
98,373 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
2334570-4
2334570-4
lmages are for reference only.Payment Methods
Delivery Services
31 Connector Receptacle, Female Sockets and Blade Sockets Through Hole, Right Angle Black Multi-Beam
Quick Inquiry
2334570-4
Specifications
| Category | Connectors, Interconnects - Backplane Connectors - Specialized |
| Manufacturer | TE Connectivity AMP Connectors |
| Series | MULTI-BEAM PLUS |
| Packaging | Tray |
| RoHS Status | Not applicable |
| Connector Usage | - |
| Connector Type | Receptacle, Female Sockets and Blade Sockets |
| Connector Style | Multi-Beam |
| Number of Positions | 31 |
| Number of Positions Loaded | All |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 4 |
| Number of Columns | - |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Contact Layout, Typical | 24 Signal, 7 Power |
| Features | Board Lock, Guide Pin |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
| Color | Black |
| Current Rating (Amps) | 100A |
| Material Flammability Rating | UL94 V-0 |
| Operating Temperature | -40°C ~ 125°C |
| Voltage Rating | 60VAC/DC |
| Base Product Number | 2334570 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

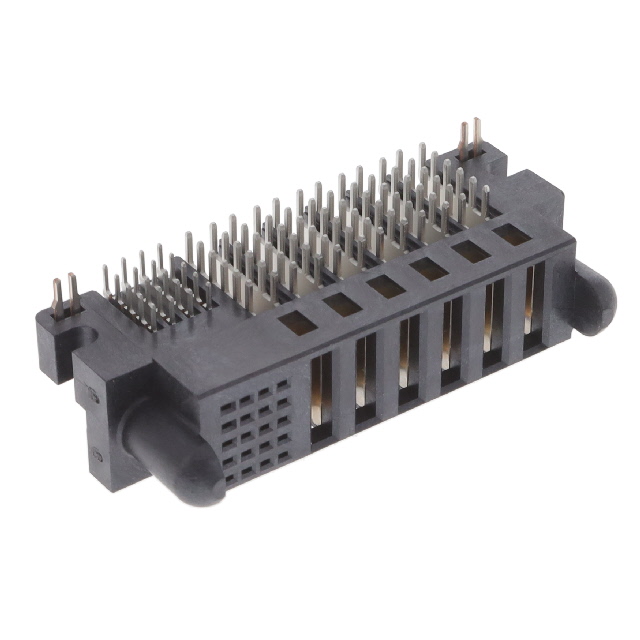

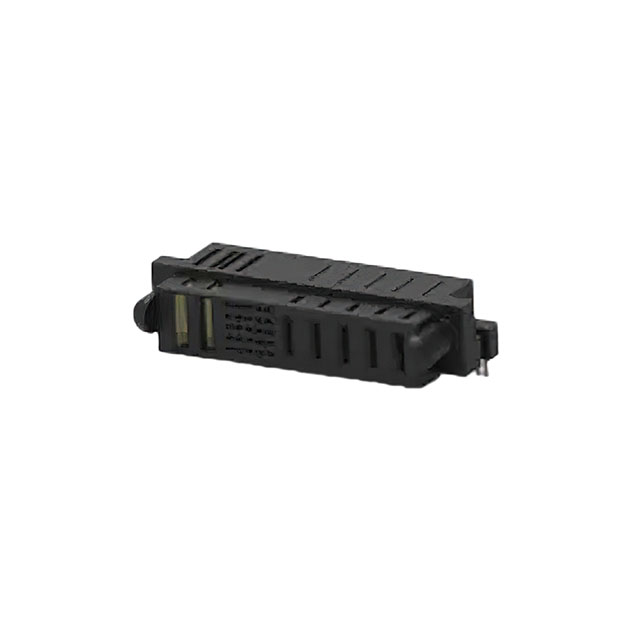

| Part Number | 2334570-8 | 2334571-1 | 2332816-1 | 2332817-1 |
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant | |
| Description | MBPLUS,R/A,REC.,SOLDER,5LP + 25S | MBPLUS R/A RCPT 20S + 6P | RA PLUG ASSY LEFT END MULTIGIG R | VERT RCPT LEFT END HALF MULTIGIG |
| Series | MULTI-BEAM PLUS | MULTI-BEAM PLUS | MULTIGIG RT 3 | MULTIGIG RT 3 |
| Packaging | Tray | Tray | Tube | Tube |
