2ED21824S06JXUMA1
lmages are for reference only.2ED21824S06JXUMA1
IC GATE DRVR HALF-BRIDGE 14SOIC
Datasheet14-SOIC (0.154", 3.90mm Width)
46,198 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Half-Bridge Gate Driver IC Non-Inverting PG-DSO-14-49
2ED21824S06JXUMA1
| Category | Integrated Circuits (ICs) - Power Management PMIC - Gate Drivers |
| Manufacturer | Infineon Technologies |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Driven Configuration | Half-Bridge |
| Channel Type | Synchronous |
| Number of Drivers | 1 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 1.1V, 1.7V |
| Current - Peak Output (Source, Sink) | 2.5A, 2.5A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 650 V |
| Rise / Fall Time (Typ) | 15ns, 15ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | PG-DSO-14-49 |
| Base Product Number | 2ED21824 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

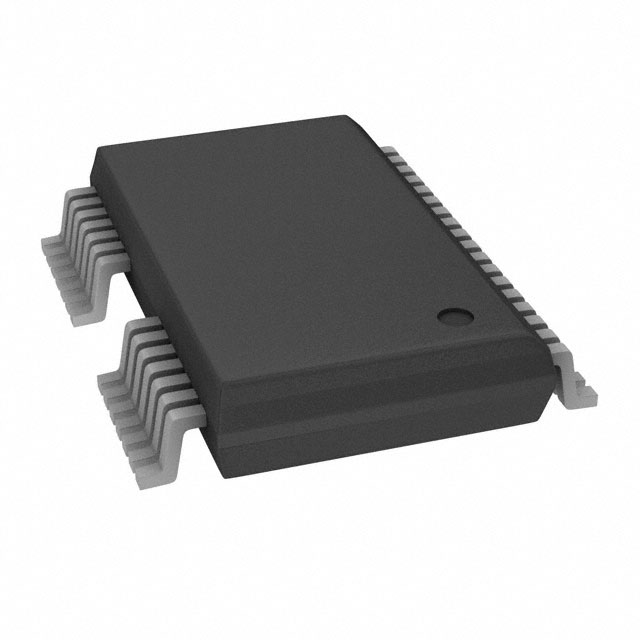

| Part Number | 2ED2182S06FXUMA1 | 2ED020I06FIXUMA1 | 2ED020I12-F | 2ED020I12F2XUMA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC GATE DRVR HALF-BRIDGE 8SOIC | IC GATE DRVR HALF-BRIDGE DSO18-2 | IC GATE DRVR HALF-BRIDGE DSO18-2 | IC GATE DRVR HALF-BRIDG DSO36-58 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
