2N7002KDW-TPQ2

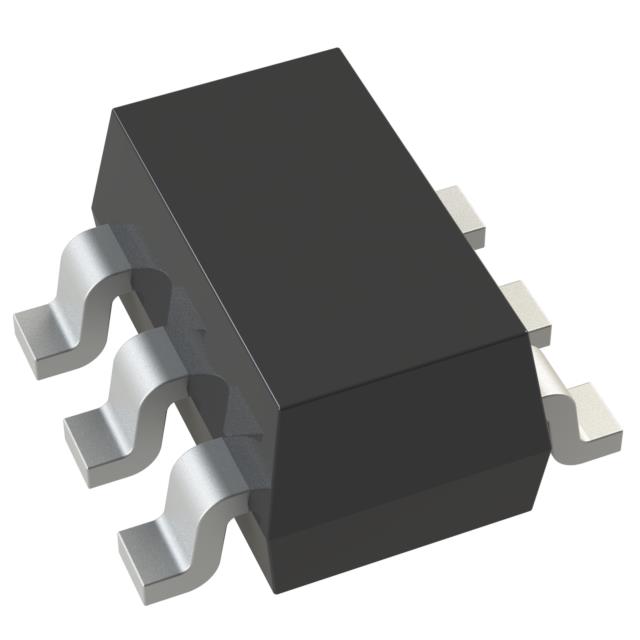

lmages are for reference only.2N7002KDW-TPQ2
MOSFET 2N-CH 60V 0.34A SOT363
Datasheet6-TSSOP, SC-88, SOT-363
31,724 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 60V 340mA 300mW Surface Mount SOT-363
2N7002KDW-TPQ2
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Micro Commercial Co |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 340mA |
| Rds On (Max) @ Id, Vgs | 3Ohm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Input Capacitance (Ciss) (Max) @ Vds | 40pF @ 10V |
| Power - Max | 300mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SOT-363 |
| Base Product Number | 2N7002 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | 2N7002KDW-TP | 2N7002KDW-TP-HF | 2N7002KDW | 2N7002KDW-13P |
| Manufacturer | Micro Commercial Co | Micro Commercial Co | HY Electronic (Cayman) Limited | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | |
| Description | MOSFET 2N-CH 60V 0.34A SOT363 | MOSFET 2N-CH 60V 0.34A SOT363 | MOSFET 2N-CH 60V 0.115A SOT363 | MOSFET 2N-CH 60V 0.34A SOT363 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR) | Tape & Reel (TR) |
