2SK3714(0)-S12-AZ
Manufacturer
RenesasDescription

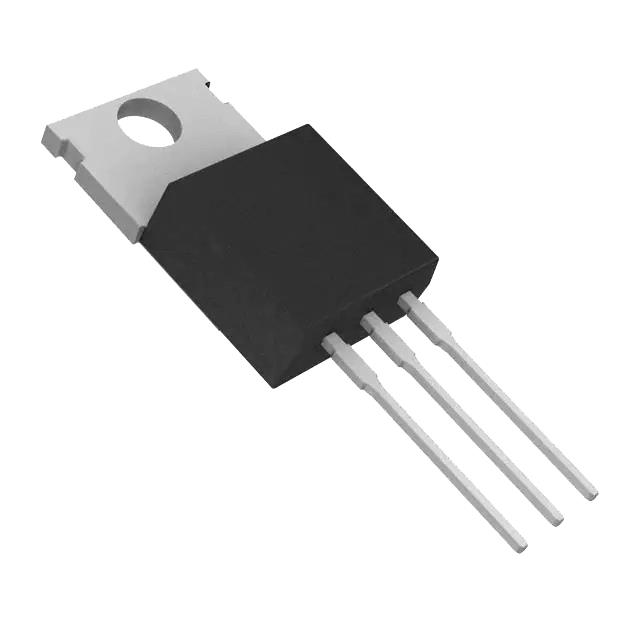

2SK3714 - SWITCHING N-CHANNEL
Datasheet
DatasheetPackage
TO-220-3 Isolated Tab
In Stock
66,462 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
2SK3714(0)-S12-AZ
2SK3714(0)-S12-AZ
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 60 V 50A (Tc) 2W (Ta), 35W (Tc) Through Hole MP-45F
Quick Inquiry
2SK3714(0)-S12-AZ
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Renesas |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 50A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V |
| Rds On (Max) @ Id, Vgs | 13mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3200 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 2W (Ta), 35W (Tc) |
| Operating Temperature | 150°C |
| Mounting Type | Through Hole |
| Supplier Device Package | MP-45F |
| Package / Case | TO-220-3 Isolated Tab |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 60 nC @ 10 V |
| Grade | - |
| Qualification | - |
