35SEF120M
lmages are for reference only.35SEF120M
CAP ALUM POLY 120UF 20% 35V TH
DatasheetRadial, Can
37,327 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
120 µF 35 V Aluminum - Polymer Capacitors Radial, Can 18mOhm 1000 Hrs @ 125°C
35SEF120M
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | OS-CON™, SEF |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Polymer |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 18mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 69.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.39 A @ 100 kHz |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | 35SEF |
| Features | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |

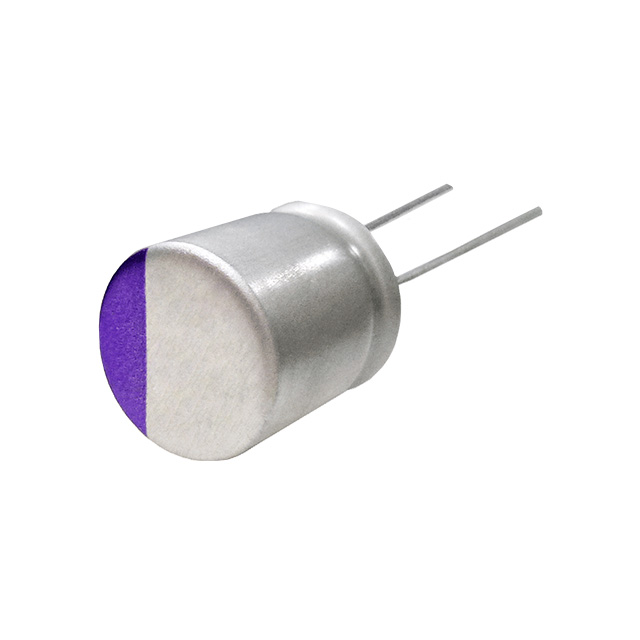

| Part Number | 35SEF22M | 35SEF39M | 35SEF82M | 35SEK180M |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM POLY 22UF 20% 35V TH | CAP ALUM POLY 39UF 20% 35V TH | CAP ALUM POLY 82UF 20% 35V TH | CAP ALUM POLY 180UF 20% 35V TH |
| Series | OS-CON™, SEF | OS-CON™, SEF | OS-CON™, SEF | OS-CON™, SEK |
| Packaging | Bulk | Bulk | Bulk | Bulk |
