35SEF22M

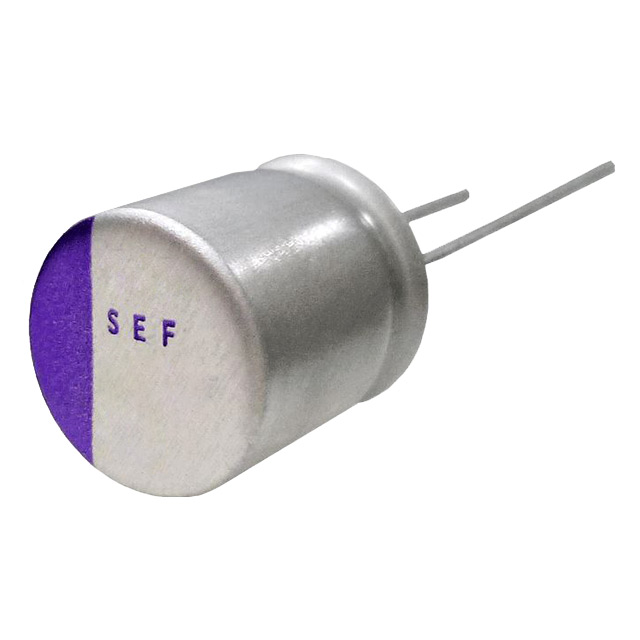

lmages are for reference only.35SEF22M
CAP ALUM POLY 22UF 20% 35V TH
DatasheetRadial, Can
18,567 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
22 µF 35 V Aluminum - Polymer Capacitors Radial, Can 35mOhm 1000 Hrs @ 125°C
35SEF22M
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | OS-CON™, SEF |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Polymer |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 35mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 41 mA @ 120 Hz |
| Ripple Current @ High Frequency | 820 mA @ 100 kHz |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | 35SEF |
| Features | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 35SEF120M | 35SEF39M | 35SEF82M | 35PHV270M10X10.5 |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Rubycon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM POLY 120UF 20% 35V TH | CAP ALUM POLY 39UF 20% 35V TH | CAP ALUM POLY 82UF 20% 35V TH | CAP ALUMHYB 270UF 20% 35V SMD |
| Series | OS-CON™, SEF | OS-CON™, SEF | OS-CON™, SEF | PHV |
| Packaging | Bulk | Bulk | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
