Product CatalogPart Number
3640KC332ZAT3A
Manufacturer
KYOCERA AVXDescription
CAP CER 3300PF 5KV X7R 3640
Datasheet
DatasheetPackage
3640 (9110 Metric)
In Stock
66,458 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
3640KC332ZAT3A
3640KC332ZAT3A
lmages are for reference only.Payment Methods
Delivery Services
3300 pF -20%, +80% 5000V (5kV) Ceramic Capacitor X7R 3640 (9110 Metric)
Quick Inquiry
3640KC332ZAT3A
Specifications
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | KYOCERA AVX |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 3300 pF |
| Tolerance | -20%, +80% |
| Voltage - Rated | 5000V (5kV) |
| Temperature Coefficient | X7R |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Voltage |
| Ratings | - |
| Applications | General Purpose |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 3640 (9110 Metric) |
| Size / Dimension | 0.360" L x 0.402" W (9.14mm x 10.20mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.100" (2.54mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 3640KC332KAT3A | 3640KC332MAT3A\SB | 3640KC332ZAT3A\SB | 3640AA103KAT3A |
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 3300PF 5KV X7R 3640 | CAP CER 3300PF 5KV X7R 3640 | CAP CER 3300PF 5KV X7R 3640 | CAP CER 10000PF 1KV C0G/NP0 3640 |
| Series | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products
3640KA101JAT3A
KYOCERA AVX
3640KA101KAT3A
KYOCERA AVX
3640KA120KAT3A
KYOCERA AVX
3640KA180KAT3A
KYOCERA AVX
3640KA200KAT3A
KYOCERA AVX
3640KA220KAT3A
KYOCERA AVX
3640KA221JAT3A
KYOCERA AVX
3640KA221JAT9A
KYOCERA AVX

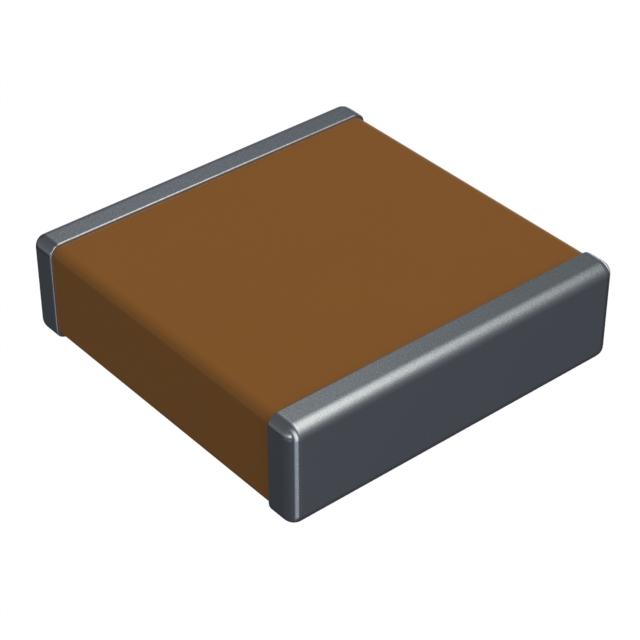

3640KA221MAT3A
