593D156X9025D2TE3

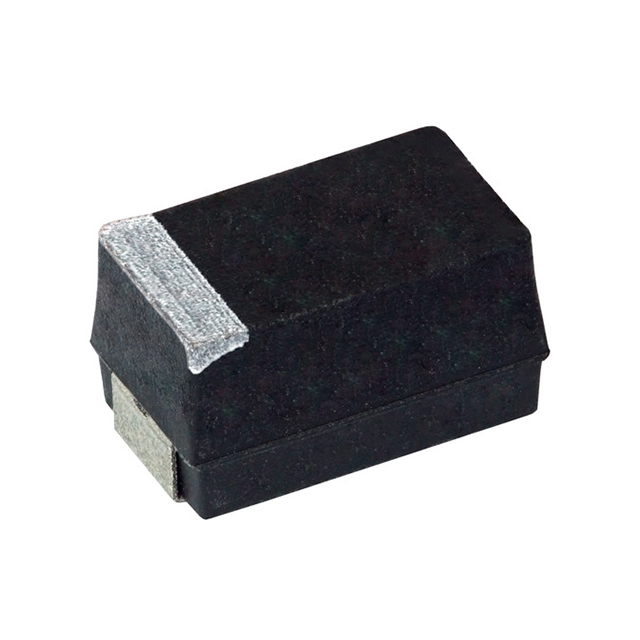

lmages are for reference only.593D156X9025D2TE3
CAP TANT 15UF 10% 25V 2917
Datasheet2917 (7343 Metric)
71,679 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
15 µF Molded Tantalum Capacitors 25 V 2917 (7343 Metric) 250mOhm
593D156X9025D2TE3
| Category | Capacitors - Tantalum Capacitors - |
| Manufacturer | Vishay Sprague |
| Series | TANTAMOUNT™, 593D |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 15 µF |
| Tolerance | ±10% |
| Voltage - Rated | 25 V |
| Type | Molded |
| ESR (Equivalent Series Resistance) | 250mOhm |
| Operating Temperature | -55°C ~ 125°C |
| Lifetime @ Temp. | - |
| Mounting Type | Surface Mount |
| Package / Case | 2917 (7343 Metric) |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.122" (3.10mm) |
| Lead Spacing | - |
| Manufacturer Size Code | D |
| Ratings | - |
| Features | General Purpose |
| Failure Rate | - |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute | |
 |
 |
|
| Part Number | 593D156X9020B2TE3 | 593D156X9020C2TE3 | 593D156X9025C2TE3 | 593D156X9025D8T |
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | CAP TANT 15UF 10% 20V 1411 | CAP TANT 15UF 10% 20V 2312 | CAP TANT 15UF 10% 25V 2312 | 593D156X9025D8T |
| Series | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
