Product CatalogPart Number
593D156X9025D8T
Manufacturer
Vishay SpragueDescription
593D156X9025D8T
Datasheet
DatasheetPackage
2917 (7343 Metric)
In Stock
47,010 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
593D156X9025D8T
593D156X9025D8T

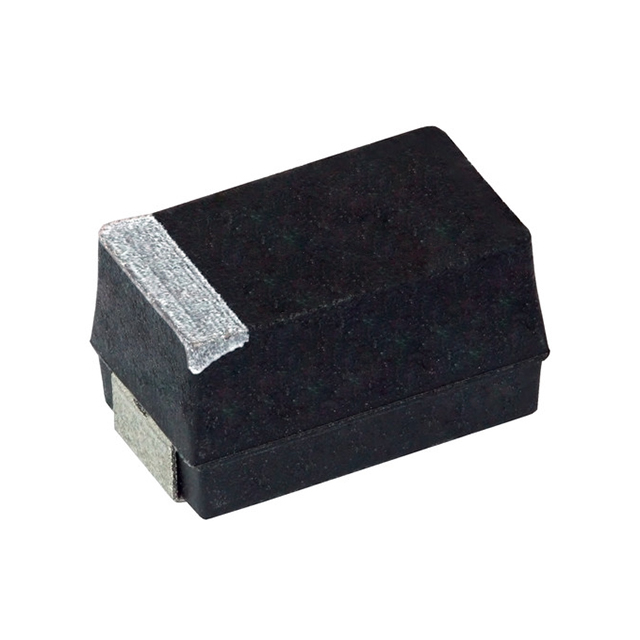

lmages are for reference only.Payment Methods
Delivery Services
15 µF Molded Tantalum Capacitors 25 V 2917 (7343 Metric) 250mOhm @ 100kHz
Quick Inquiry
593D156X9025D8T
Specifications
| Category | Capacitors - Tantalum Capacitors - |
| Manufacturer | Vishay Sprague |
| Series | TANTAMOUNT™, 593D |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS non-compliant |
| Capacitance | 15 µF |
| Tolerance | ±10% |
| Voltage - Rated | 25 V |
| Type | Molded |
| ESR (Equivalent Series Resistance) | 250mOhm @ 100kHz |
| Operating Temperature | -55°C ~ 125°C |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 2917 (7343 Metric) |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.122" (3.10mm) |
| Lead Spacing | - |
| Manufacturer Size Code | D |
| Ratings | - |
| Features | General Purpose |
| Failure Rate | - |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
|
| Part Number | 593D156X9025C2TE3 | 593D156X9025D2TE3 | 593D156X9004A2TE3 | 593D156X9010A2TE3 |
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP TANT 15UF 10% 25V 2312 | CAP TANT 15UF 10% 25V 2917 | CAP TANT 15UF 10% 4V 1206 | CAP TANT 15UF 10% 10V 1206 |
| Series | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
