768772471
lmages are for reference only.768772471
FIXED IND 470UH 600MA 1.32OHM TH
DatasheetRadial, Vertical Cylinder (Open)
22,285 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
470 µH Unshielded Drum Core, Wirewound Inductor 600 mA 1.32Ohm Max Radial, Vertical Cylinder (Open)
768772471
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Würth Elektronik |
| Series | WE-TI HV |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 470 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 600 mA |
| Current - Saturation (Isat) | 900mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.32Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 2.5MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.307" Dia (7.80mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Base Product Number | - |
| Product Attribute | |
 |
 |
 |

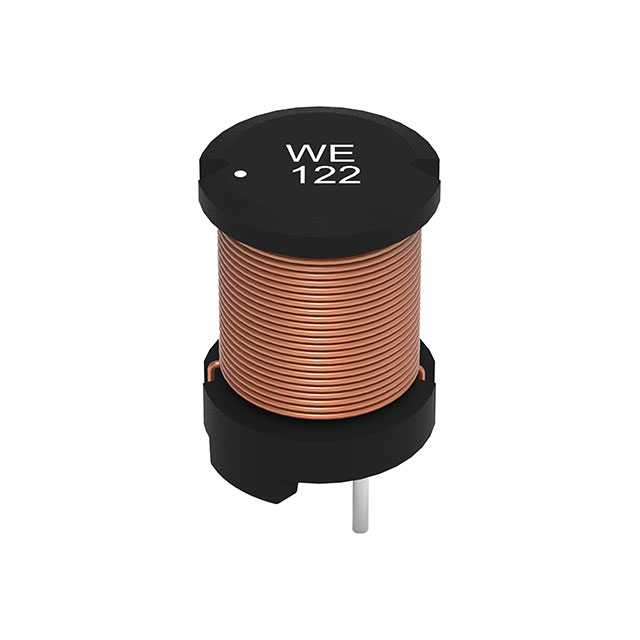

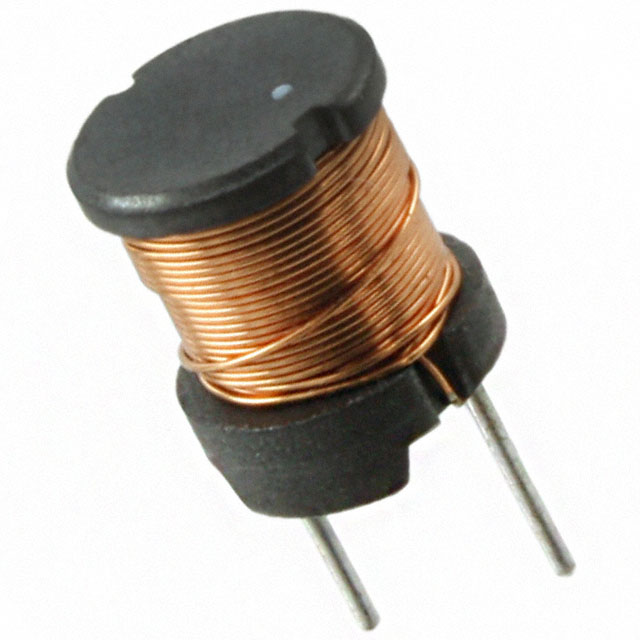

| Part Number | 768772182 | 768772821 | 7687480102 | 7687480122 |
| Manufacturer | Würth Elektronik | Würth Elektronik | Würth Elektronik | Würth Elektronik |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 1.8MH 350MA 3.3 OHM TH | FIXED IND 820UH 500MA 1.92OHM TH | WE-TI HV RADIAL LEADED WIRE WOUN | WE-TI HV RADIAL LEADED WIRE WOUN |
| Series | Würth Elektronik | Würth Elektronik | Würth Elektronik | Würth Elektronik |
| Packaging | Tray | Tray | Tray | Tray |
