8020.0609.H.PT
lmages are for reference only.8020.0609.H.PT
FUSE CERM 50A 250VAC 70VDC 3AB
Datasheet3AB, 3AG, 1/4" x 1-1/4" (Axial)
54,843 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
50 A 250 V AC 70 V DC Fuse Cartridge, Ceramic Through Hole 3AB, 3AG, 1/4" x 1-1/4" (Axial)
8020.0609.H.PT
| Category | Circuit Protection - Fuses - |
| Manufacturer | SCHURTER Inc. |
| Series | SUT-H 6.3x32 |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Fuse Type | Cartridge, Ceramic |
| Current Rating (Amps) | 50 A |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 70 V |
| Response Time | Slow Blow |
| Package / Case | 3AB, 3AG, 1/4" x 1-1/4" (Axial) |
| Breaking Capacity @ Rated Voltage | 500A |
| Melting I²t | 9908.0 |
| Approval Agency | CE, CSA, cURus, UL |
| Operating Temperature | -40°C ~ 85°C |
| Color | - |
| Size / Dimension | 0.270" Dia x 1.291" L (6.85mm x 32.80mm) |
| Base Product Number | SUT-H-6332 |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |

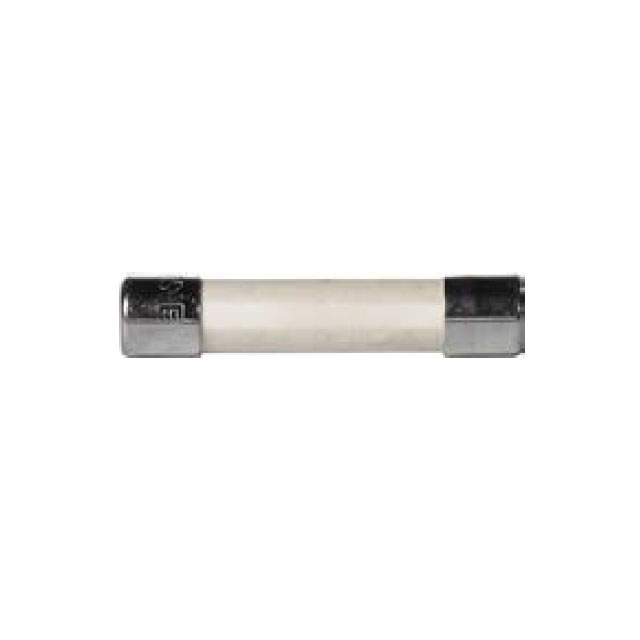

| Part Number | 8020.0609.H | 8020.0602.H.PT | 8020.0603.H.PT | 8020.0604.H |
| Manufacturer | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE CERM 50A 250VAC 70VDC 3AB | FUSE CERM 10A 250VAC 100VDC 3AB | FUSE CERM 12A 250VAC 100VDC 3AB | FUSE CERM 15A 250VAC 100VDC 3AB |
| Series | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| Packaging | Box | Box | Box | Box |
