8020.5013.G
lmages are for reference only.8020.5013.G
FUSE CERM 1.6A 500VAC 400VDC 3AB
Datasheet3AB, 3AG, 1/4" x 1-1/4"
10,207 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.6 A 500 V AC 400 V DC Fuse Cartridge, Ceramic Requires Holder 3AB, 3AG, 1/4" x 1-1/4"
8020.5013.G
| Category | Circuit Protection - Fuses - |
| Manufacturer | SCHURTER Inc. |
| Series | SHT 6.3X32 |
| Packaging | - |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge, Ceramic |
| Current Rating (Amps) | 1.6 A |
| Voltage Rating - AC | 500 V |
| Voltage Rating - DC | 400 V |
| Response Time | Slow Blow |
| Package / Case | 3AB, 3AG, 1/4" x 1-1/4" |
| Breaking Capacity @ Rated Voltage | 1.5kA |
| Melting I²t | 5.4 |
| Approval Agency | cURus |
| Operating Temperature | -40°C ~ 85°C |
| Color | - |
| Size / Dimension | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) |
| Base Product Number | 8020.5013 |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |

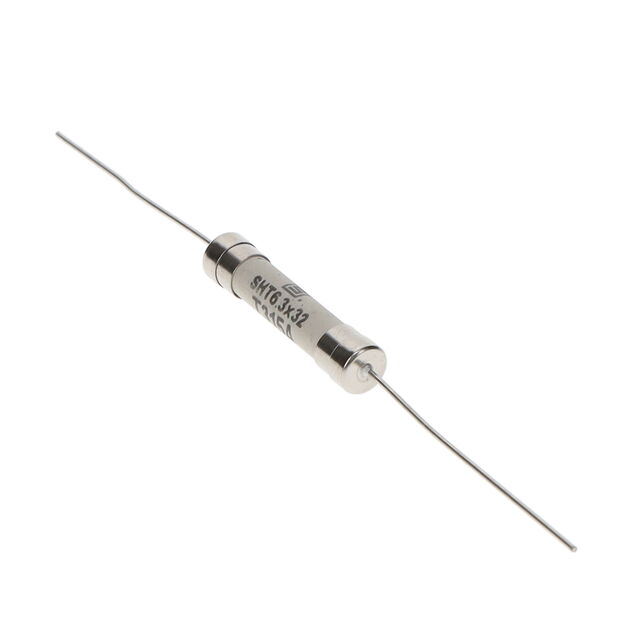

| Part Number | 8020.5011.PT | 8020.5012.G | 8020.5015.G | 8020.5016.PT |
| Manufacturer | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE CERM 1A 500VAC 400VDC 3AB | FUSE CERM 1.25A 500VAC 400VDC | FUSE CERM 2.5A 500VAC 400VDC 3AB | FUSE CERM 3.15A 500VAC 400VDC |
| Series | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| Packaging |
