Product CatalogPart Number
8468-21A1-RK-TP
Manufacturer
3MDescription
CONN SOCKET PLCC 68POS TIN
Datasheet
DatasheetPackage
-
In Stock
31,106 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
8468-21A1-RK-TP
8468-21A1-RK-TP
lmages are for reference only.Payment Methods
Delivery Services
68 (4 x 17) Pos PLCC Socket Tin Surface Mount
Quick Inquiry
8468-21A1-RK-TP
Specifications
| Category | Connectors, Interconnects - Sockets for ICs-Transistors - IC Sockets |
| Manufacturer | 3M |
| Series | 8400 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | PLCC |
| Number of Positions or Pins (Grid) | 68 (4 x 17) |
| Pitch - Mating | 0.050" (1.27mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 160.0µin (4.06µm) |
| Contact Material - Mating | Copper Alloy |
| Mounting Type | Surface Mount |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - Post | 0.050" (1.27mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 160.0µin (4.06µm) |
| Contact Material - Post | Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Operating Temperature | -40°C ~ 105°C |
| Termination Post Length | 0.132" (3.35mm) |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 1 A |
| Contact Resistance | - |
| Base Product Number | 8468 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

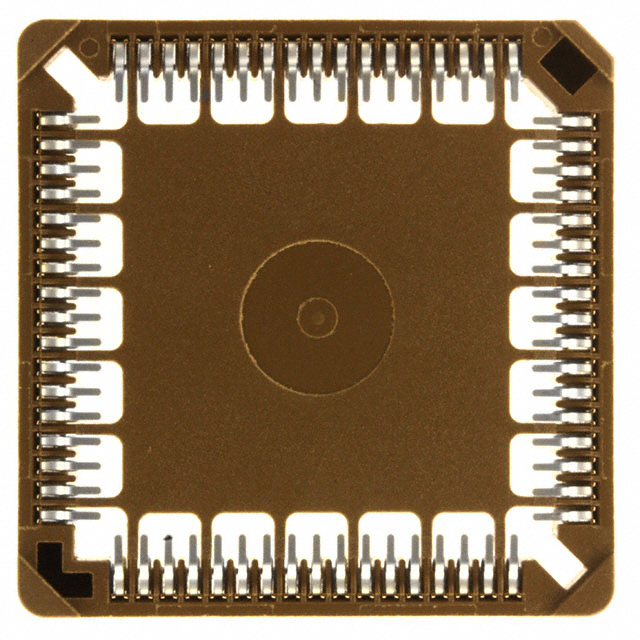

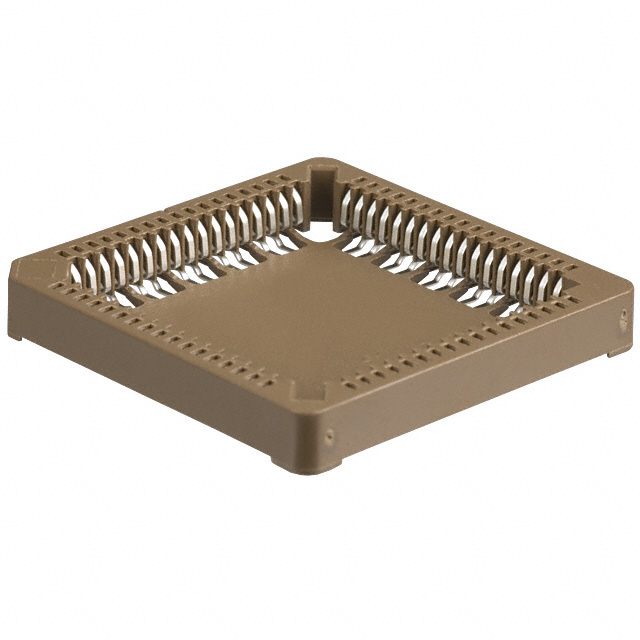

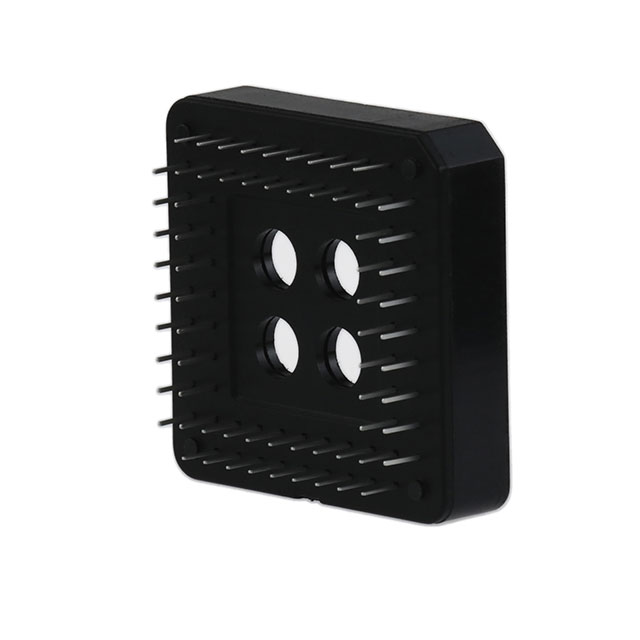

| Part Number | 8468-11B1-RK-TP | 8468-21B1-RK-TP | 8468-21B1-RK-TR | 115-93-648-61-001000 |
| Manufacturer | 3M | 3M | 3M | Mill-Max Manufacturing Corp. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | CONN SOCKET PLCC 68POS TIN | CONN SOCKET PLCC 68POS TIN | CONN SOCKET PLCC 68POS TIN | CONN IC SKT DBL |
| Series | 8400 | 8400 | 8400 | 115 |
| Packaging | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
