Product CatalogPart Number
8501RSD42V53
Manufacturer
Schneider ElectricDescription
PLUG IN RELAY, TYPE R, MINIATURE
Datasheet
DatasheetPackage
-
In Stock
96,863 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
8501RSD42V53
8501RSD42V53
lmages are for reference only.Payment Methods
Delivery Services
General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable
Quick Inquiry
8501RSD42V53
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Schneider Electric |
| Series | Square D 8501R |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Socketable |
| Coil Voltage | 24VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 15 A |
| Switching Voltage | 300VAC, 30VDC - Max |
| Load - Max Switching | 4500VA, 450W |
| Coil Current | - |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | - |
| Must Release Voltage | - |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Operating Temperature | -40°C ~ 55°C |
| Contact Material | Silver (Ag), Gold (Au) |
| Approval Agency | - |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | - |
| Base Product Number | 8501RS |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

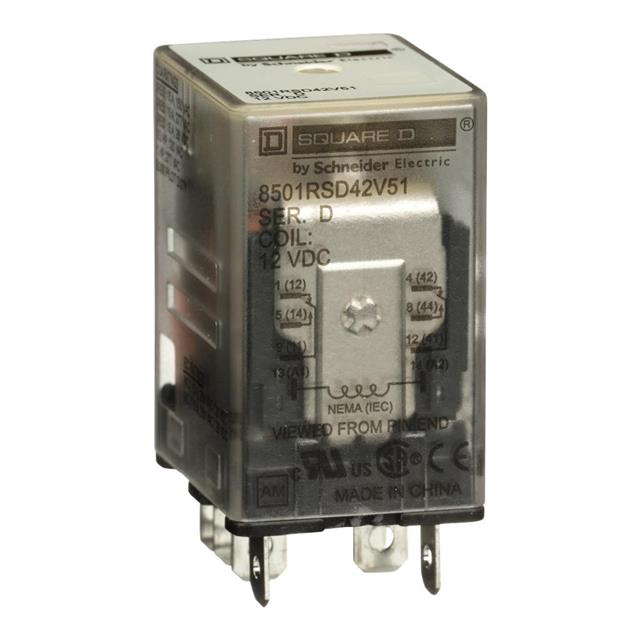

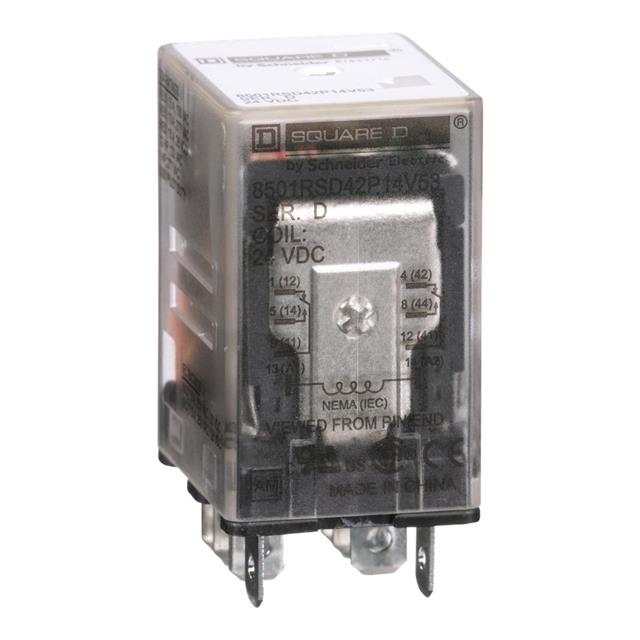

| Part Number | 8501RSD42P14V53 | 8501RSD42V51 | 8501RS14P14V20 | 8501RS14V14 |
| Manufacturer | Schneider Electric | Schneider Electric | Schneider Electric | Schneider Electric |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PLUG IN RELAY, TYPE R, MINIATURE | PLUG IN RELAY, TYPE R, MINIATURE | PLUG IN RELAY, TYPE R, MINIATURE | PLUG IN RELAY, TYPE R, MINIATURE |
| Series | Schneider Electric | Schneider Electric | Schneider Electric | Schneider Electric |
| Packaging | Box | Box | Box | Box |
Customers Also Interested in
Recommended Products

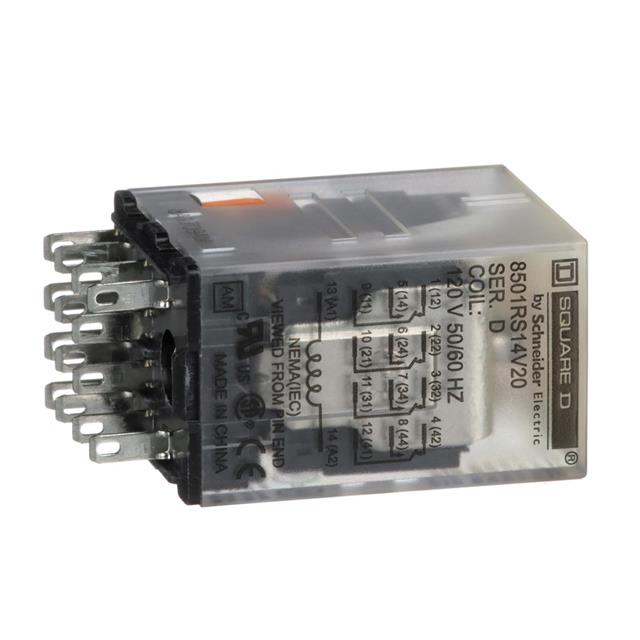

8501RS14P14V20
Schneider Electric
8501RS14V14
Schneider Electric
8501RS14V20
Schneider Electric
8501RS24P14V20
Schneider Electric
8501RS24V20
Schneider Electric
8501RS34V14
Schneider Electric
8501RS34V20
Schneider Electric
8501RS41P14V14
Schneider Electric
8501RS41P14V20
Schneider Electric
8501RS41V14
Schneider Electric
8501RS41V20
Schneider Electric
8501RS42P14V14
Schneider Electric
8501RS42P14V20
Schneider Electric
8501RS42V14
Schneider Electric

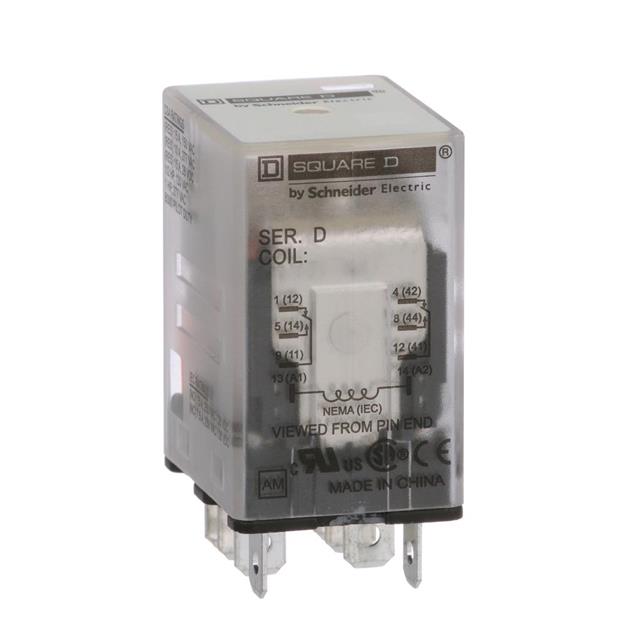

8501RS42V20
