Product CatalogPart Number
8501XDO60V53
Manufacturer
Schneider ElectricDescription
NEMA CONTROL RELAY, TYPE X, MACH
Datasheet
DatasheetPackage
-
In Stock
34,808 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
8501XDO60V53
8501XDO60V53
lmages are for reference only.Payment Methods
Delivery Services
General Purpose Relay 6PST-NO (6 Form A) 24VDC Coil Chassis Mount
Quick Inquiry
8501XDO60V53
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Schneider Electric |
| Series | Square D 8501X |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Chassis Mount |
| Coil Voltage | 24VDC |
| Contact Form | 6PST-NO (6 Form A) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 600VAC - Max |
| Load - Max Switching | 6000VA |
| Coil Current | - |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Screw Terminal |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 19.2 VDC |
| Must Release Voltage | - |
| Operate Time | 37 ms |
| Release Time | 21 ms |
| Operating Temperature | -40°C ~ 71°C |
| Contact Material | - |
| Approval Agency | CE, CSA, UL |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | - |
| Base Product Number | 8501XD |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 8501XDO60V62 | 8501XDO20V53 | 8501XDO20V62 | 8501XDO20V66 |
| Manufacturer | Schneider Electric | Schneider Electric | Schneider Electric | Schneider Electric |
| RoHS Status | ROHS3 Compliant | |||
| Description | RELAY 600VAC 10AMP NEMA +OPTIONS | RELAY 600VAC 10AMP NEMA +OPTIONS | RELAY 600VAC 10AMP NEMA +OPTIONS | RELAY 600VAC 10AMP NEMA +OPTIONS |
| Series | Schneider Electric | Schneider Electric | Schneider Electric | Schneider Electric |
| Packaging | Box | Box | Box | Box |
Customers Also Interested in
Recommended Products
8501XDO20V53
Schneider Electric

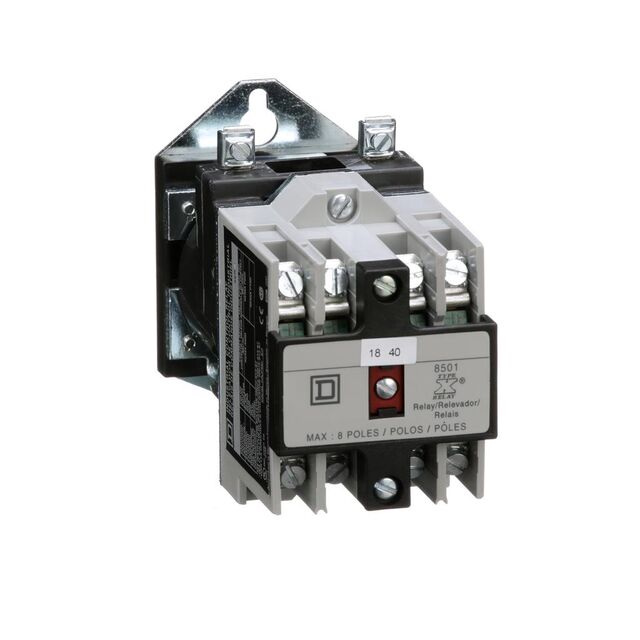

8501XDO20V62
Schneider Electric
8501XDO20V66
Schneider Electric

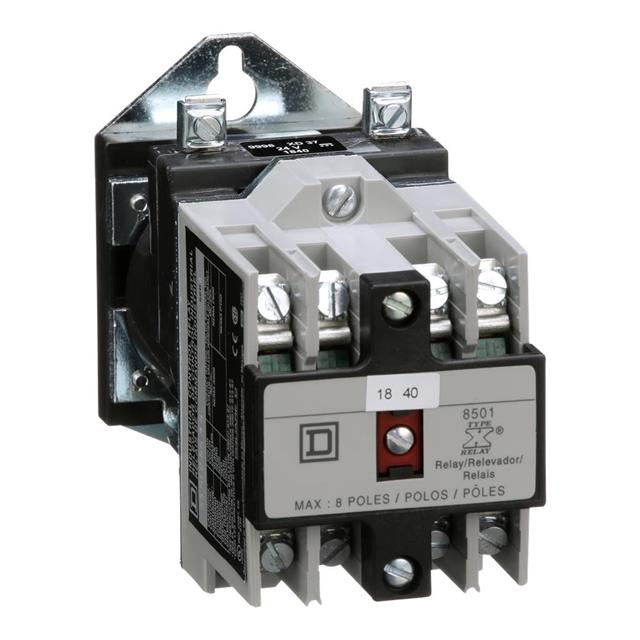

8501XDO40V53
Schneider Electric
8501XDO40V56
Schneider Electric
8501XDO40V56Y414
Schneider Electric
8501XDO40V62
Schneider Electric

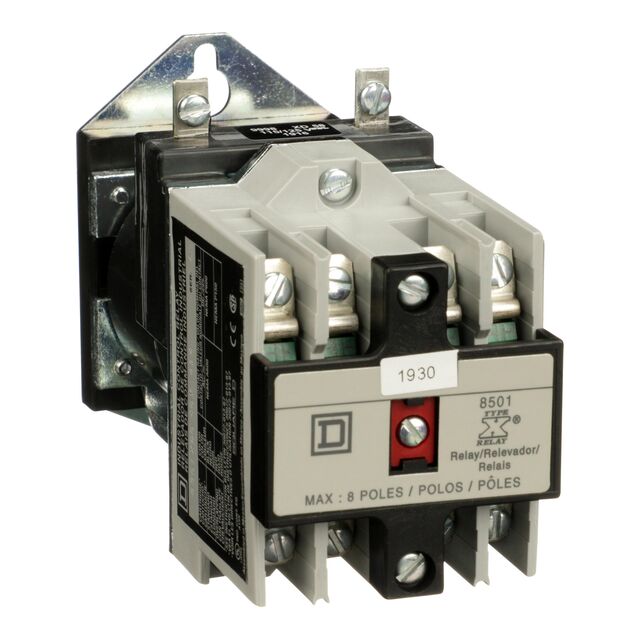

8501XDO40V62Y414
Schneider Electric
8501XDO40V66
Schneider Electric

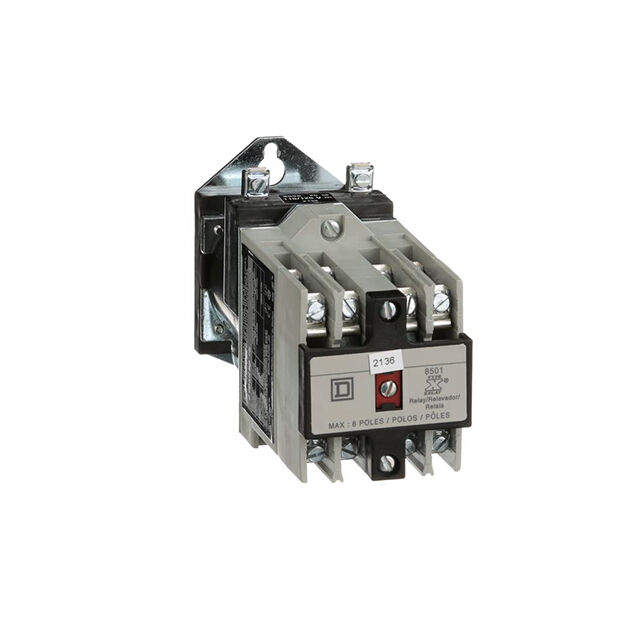

8501XDO60V62
Schneider Electric
8501XDO80V53
Schneider Electric
8501XDO80V56
Schneider Electric

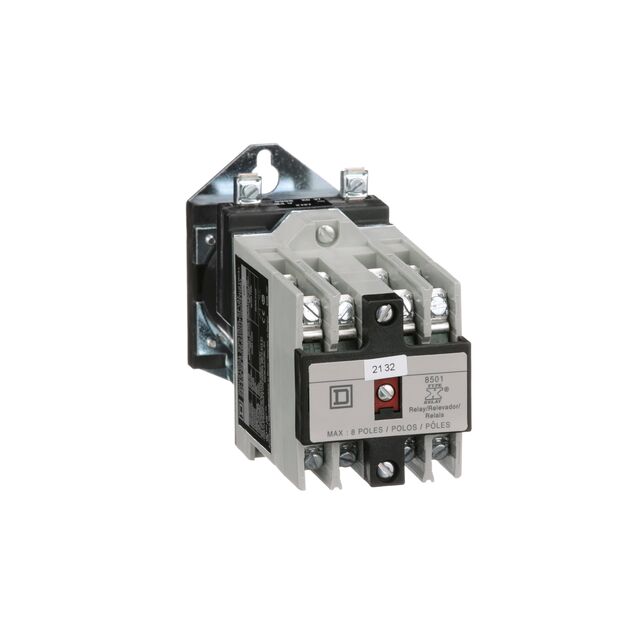

8501XDO80V62
Schneider Electric

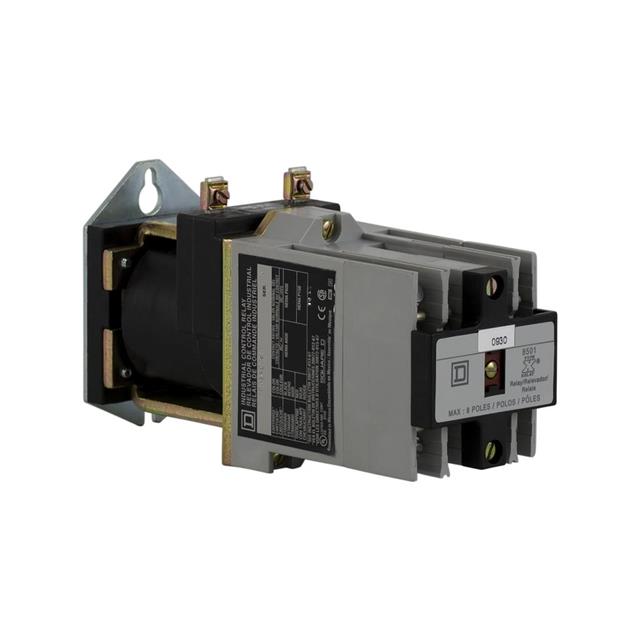

8501XDO80V66
Schneider Electric

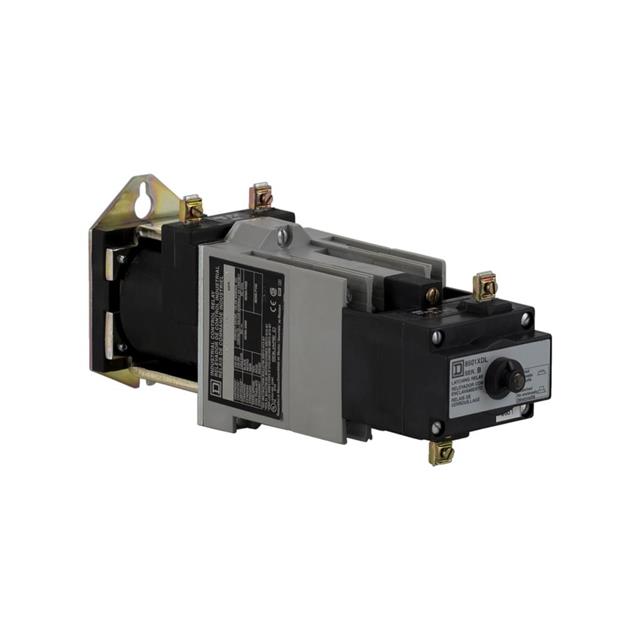

8501XDO80XDLV53
Schneider Electric
8501XDO80XDLV62
Schneider Electric

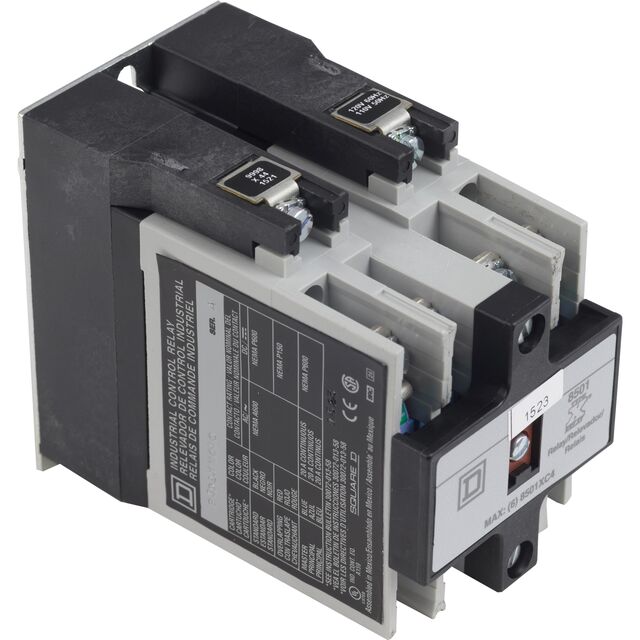

8501XMO20V02
Schneider Electric

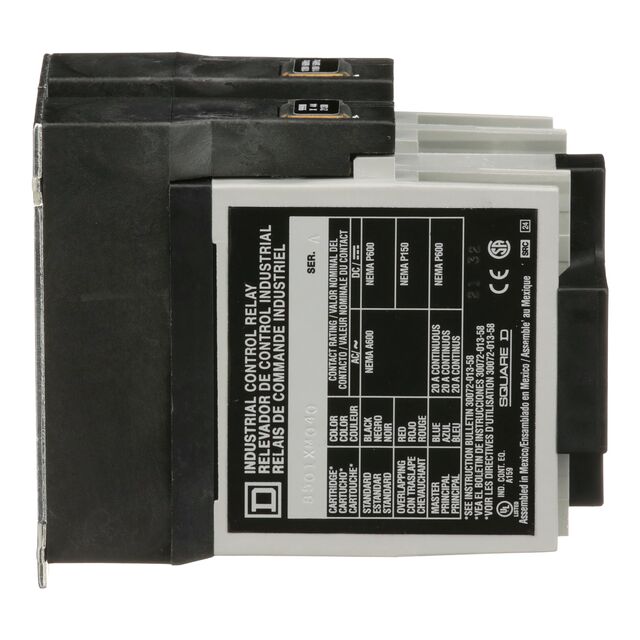

8501XMO40V02
