Product CatalogPart Number
8501XMO20V02
Manufacturer
Schneider ElectricDescription
RELAY 600VAC 20AMP NEMA +OPTIONS
Datasheet
DatasheetPackage
-
In Stock
10,703 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
8501XMO20V02
8501XMO20V02

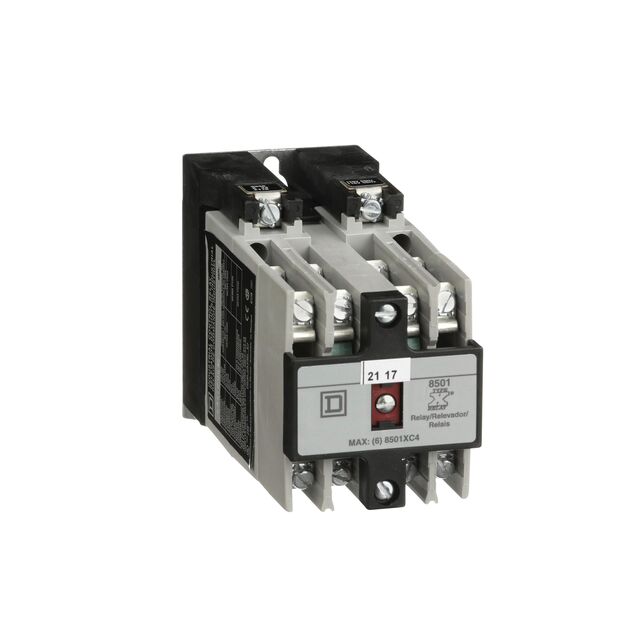

lmages are for reference only.Payment Methods
Delivery Services
General Purpose Relay DPST-NO (2 Form A) 120VAC Coil Chassis Mount
Quick Inquiry
8501XMO20V02
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Schneider Electric |
| Series | Square D 8501X |
| Packaging | Box |
| RoHS Status | |
| Mounting Type | Chassis Mount |
| Coil Voltage | 120VAC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 600VAC - Max |
| Load - Max Switching | 6000VA |
| Coil Current | - |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Screw Terminal |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | - |
| Must Release Voltage | - |
| Operate Time | 15 ms |
| Release Time | 16 ms |
| Operating Temperature | -40°C ~ 71°C |
| Contact Material | - |
| Approval Agency | CSA, UL |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | - |
| Base Product Number | 8501XM |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 8501XMO40V02 | 8501XMO60V02 | 858-151 | 8501RSD42V53 |
| Manufacturer | Schneider Electric | Schneider Electric | WAGO Corporation | Schneider Electric |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | RELAY 600VAC 20AMP NEMA +OPTIONS | RELAY 600VAC 20AMP NEMA +OPTIONS | RELAY GEN PURPOSE 16A 24V | PLUG IN RELAY, TYPE R, MINIATURE |
| Series | Schneider Electric | Schneider Electric | WAGO Corporation | Schneider Electric |
| Packaging | Box | Box | Box | Box |
