94SVP687X0004F8

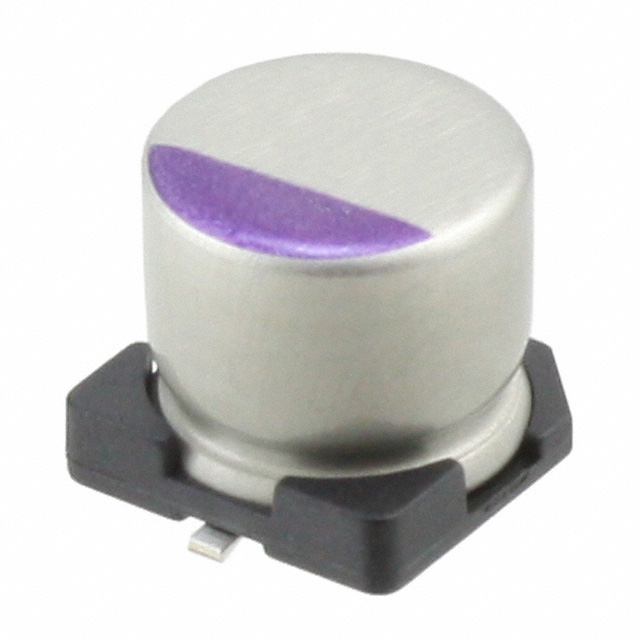

lmages are for reference only.94SVP687X0004F8
CAP ALUM POLY 680UF 20% 4V SMD
DatasheetRadial, Can - SMD
77,885 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
680 µF 4 V Aluminum - Polymer Capacitors Radial, Can - SMD 25mOhm 2000 Hrs @ 105°C
94SVP687X0004F8
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Vishay Sprague |
| Series | 94SVP |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Polymer |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | 25mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.7 A @ 100 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Base Product Number | - |
| Features | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 94SVP106X0010A5 | 94SVP106X0020B6 | 94SVP106X0025E7 | 94SVP107X0016F8 |
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM POLY 10UF 20% 10V SMD | CAP ALUM POLY 10UF 20% 20V SMD | CAP ALUM POLY 10UF 20% 25V SMD | CAP ALUM POLY 100UF 20% 16V SMD |
| Series | 94SVP | 94SVP | 94SVP | 94SVP |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
