A3T100
lmages are for reference only.A3T100
FUSE,CLASS T,FAST ACTING,200KA A
DatasheetCylindrical, Blade Terminal (Bolt)
53,387 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100A 300 VAC 160 VDC Fuse Cartridge Bolt Mount
A3T100
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. |
| Series | A3T |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Bolt Mount |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 100A |
| Voltage Rating - AC | 300 VAC |
| Response Time | Fast Blow |
| Applications | Electrical, Industrial |
| Features | - |
| Class | T |
| Approval Agency | CSA, UL |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 50kA DC |
| Package / Case | Cylindrical, Blade Terminal (Bolt) |
| Size / Dimension | 0.811" Dia x 2.157" L (20.60mm x 54.80mm) |
| Base Product Number | - |
| Voltage Rating - DC | 160 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |

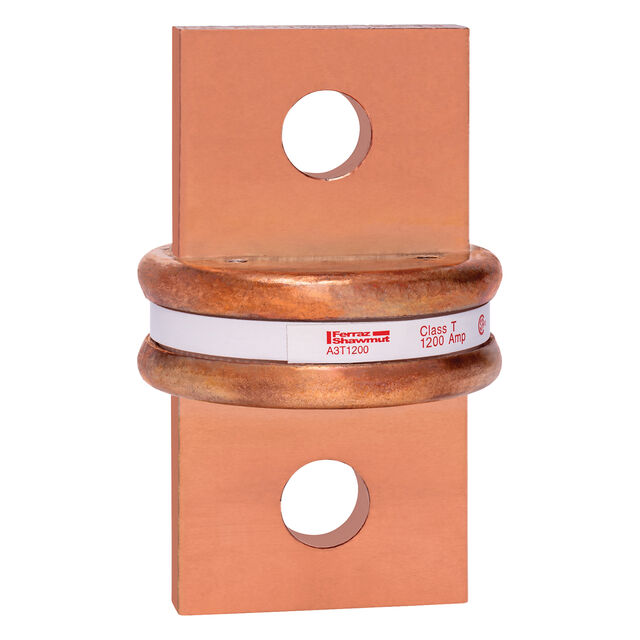

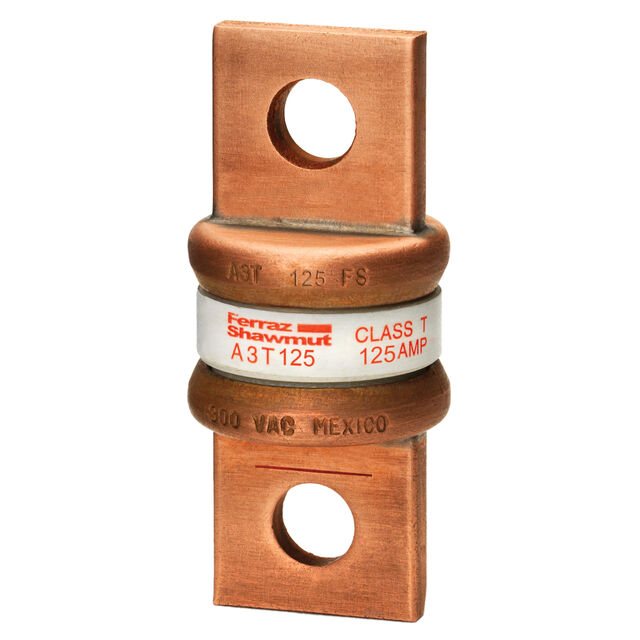

| Part Number | A3T-250 | A3T1200 | A3T125 | A3T150 |
| Manufacturer | Riedon products by Bourns | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | FUSE CRTRDGE 250A 300VAC/125VDC | FUSE,CLASS T,FAST ACTING,200KA A | FUSE,CLASS T,FAST ACTING,200KA A | FUSE,CLASS T,FAST ACTING,200KA A |
| Series | A3T | A3T | A3T | A3T |
| Packaging | Bulk | Box | Box | Box |
