A6D500R
lmages are for reference only.A6D500R
600V 500A RK1 TD FUSE
DatasheetCylindrical, Blade Terminals
93,127 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
500A 600 VAC 600 VDC Fuse Cartridge Requires Holder
A6D500R
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. |
| Series | A6D-R |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 500A |
| Voltage Rating - AC | 600 VAC |
| Response Time | Slow Blow |
| Applications | Electrical, Industrial |
| Features | - |
| Class | RK1 |
| Approval Agency | CSA, UL |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 100kA DC |
| Package / Case | Cylindrical, Blade Terminals |
| Size / Dimension | 3.150" Dia x 13.386" L (80.00mm x 340.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 600 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |

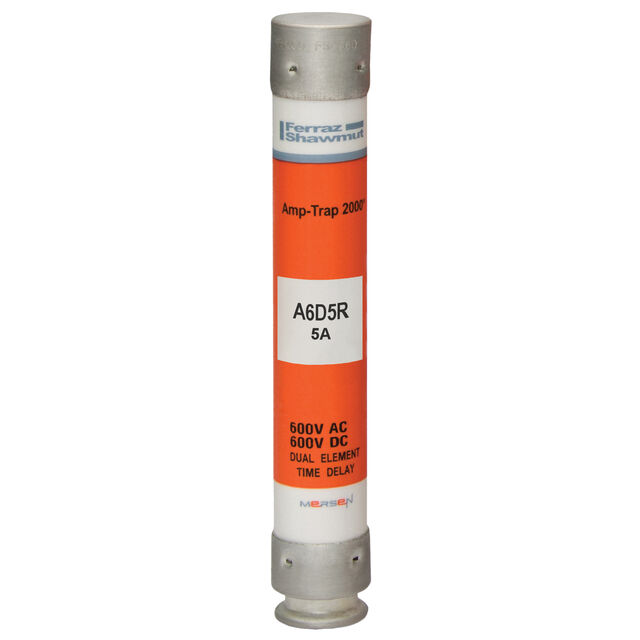

| Part Number | A6D50R | A6D5R | ATQR1/2 | A4J200 |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 600V 50A RK1 TD FUSE | 600V 5A RK1 TD FUSE | CC TD FUSE 600V 1/2A ATQR | 600V 200A CLASS J FUSE |
| Series | A6D-R | A6D-R | ATQR | A4J |
| Packaging | Box | Box | Box | Box |
