A6D50R
lmages are for reference only.A6D50R
600V 50A RK1 TD FUSE
DatasheetCartridge, Non-Standard
59,978 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
50A 600 VAC 600 VDC Fuse Cartridge Requires Holder
A6D50R
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. |
| Series | A6D-R |
| Packaging | Box |
| RoHS Status | RoHS non-compliant |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 50A |
| Voltage Rating - AC | 600 VAC |
| Response Time | Slow Blow |
| Applications | Electrical, Industrial |
| Features | - |
| Class | RK1 |
| Approval Agency | CSA, UL |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 100kA DC |
| Package / Case | Cartridge, Non-Standard |
| Size / Dimension | 1.063" Dia x 5.472" L (27.00mm x 139.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 600 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |

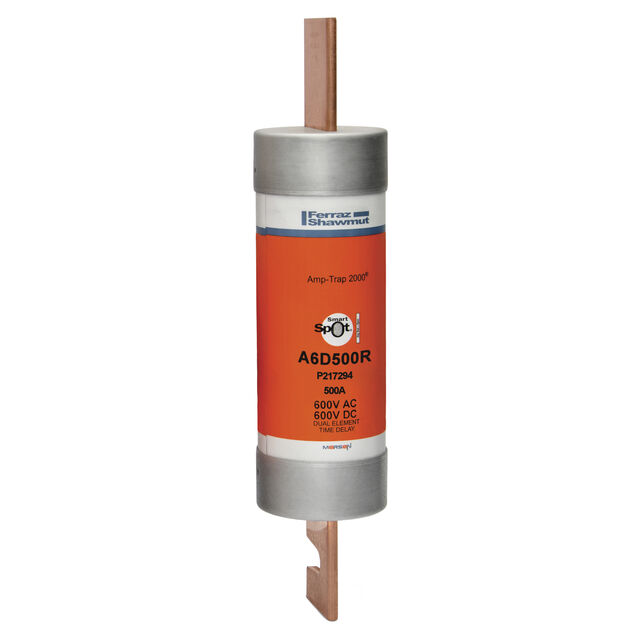

| Part Number | A6D500R | A6D100R | A6D10R | A6D110R |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | 600V 500A RK1 TD FUSE | 600V 100A RK1 TD FUSE | 600V 10A RK1 TD FUSE | 600V 110A RK1 TD FUSE |
| Series | A6D-R | A6D-R | A6D-R | A6D-R |
| Packaging | Box | Box | Box | Box |
