ACM2012-361-2P-TL002

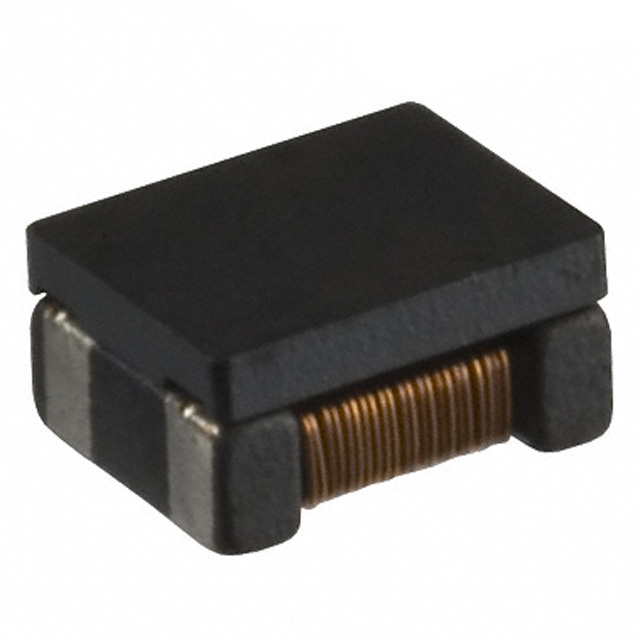

lmages are for reference only.ACM2012-361-2P-TL002
CMC 220MA 2LN 360 OHM SMD
Datasheet0805 (2012 Metric), 4 PC Pad
86,895 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2 Line Common Mode Choke Surface Mount 360 Ohms @ 100 MHz 220mA DCR 500mOhm
ACM2012-361-2P-TL002
| Category | Filters - Common Mode Chokes - |
| Manufacturer | TDK Corporation |
| Series | ACM |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Signal Line |
| Number of Lines | 2 |
| Inductance @ Frequency | - |
| Current Rating (Max) | 220mA |
| DC Resistance (DCR) (Max) | 500mOhm |
| Voltage Rating - DC | 50V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Height (Max) | 0.051" (1.30mm) |
| Package / Case | 0805 (2012 Metric), 4 PC Pad |
| Base Product Number | - |
| Impedance @ Frequency | 360 Ohms @ 100 MHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ACM2012-361-2P-T001 | ACM2012-361-2P-T002 | ACM2012-102-2P-T001 | ACM2012-121-2P-T001 |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMC 220MA 2LN 360 OHM SMD | CMC 220MA 2LN 360 OHM SMD | CMC 190MA 2LN 1KOHM SMD AEC-Q200 | CMC 370MA 2LN 120 OHM SMD |
| Series | ACM | ACM | ACM | ACM |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
