ACM2012D-900-2P-T

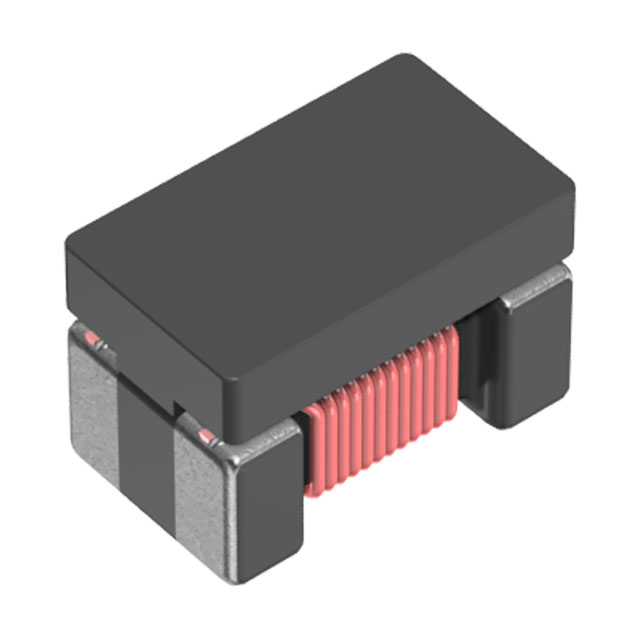

lmages are for reference only.ACM2012D-900-2P-T
CMC 300MA 2LN 90 OHM SMD
DatasheetHorizontal, 4 PC Pad
84,001 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2 Line Common Mode Choke Surface Mount 90 Ohms @ 100 MHz 300mA DCR 300mOhm
ACM2012D-900-2P-T
| Category | Filters - Common Mode Chokes - |
| Manufacturer | TDK Corporation |
| Series | ACM-D |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS non-compliant |
| Filter Type | Signal Line |
| Number of Lines | 2 |
| Inductance @ Frequency | - |
| Current Rating (Max) | 300mA |
| DC Resistance (DCR) (Max) | 300mOhm |
| Voltage Rating - DC | 20V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Height (Max) | 0.051" (1.30mm) |
| Package / Case | Horizontal, 4 PC Pad |
| Base Product Number | - |
| Impedance @ Frequency | 90 Ohms @ 100 MHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ACM2012D-900-2P-T00 | ACM2012D-900-2P-TL00 | ACM2012-102-2P-T001 | ACM2012-121-2P-T001 |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMC 300MA 2LN 90 OHM SMD | CMC 300MA 2LN 90 OHM SMD | CMC 190MA 2LN 1KOHM SMD AEC-Q200 | CMC 370MA 2LN 120 OHM SMD |
| Series | ACM-D | ACM-D | ACM | ACM |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
