ACM4532-102-3P-T

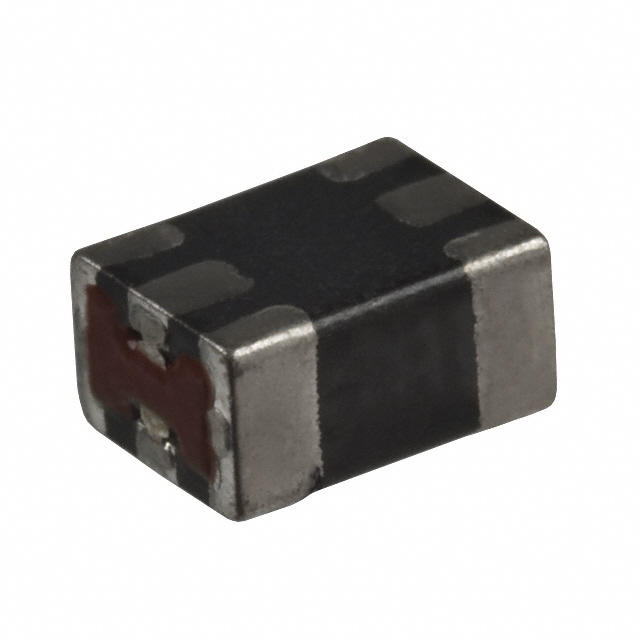

lmages are for reference only.ACM4532-102-3P-T
CMC 200MA 3LN 1K OHM SMD
Datasheet1812 (4532 Metric), 6 Lead
70,006 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3 Line Common Mode Choke Surface Mount 1 kOhms @ 100 MHz 200mA DCR 600mOhm
ACM4532-102-3P-T
| Category | Filters - Common Mode Chokes - |
| Manufacturer | TDK Corporation |
| Series | ACM |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS non-compliant |
| Filter Type | Signal Line |
| Number of Lines | 3 |
| Inductance @ Frequency | - |
| Current Rating (Max) | 200mA |
| DC Resistance (DCR) (Max) | 600mOhm |
| Voltage Rating - DC | 20V |
| Voltage Rating - AC | - |
| Operating Temperature | -25°C ~ 85°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height (Max) | 0.091" (2.30mm) |
| Package / Case | 1812 (4532 Metric), 6 Lead |
| Base Product Number | - |
| Impedance @ Frequency | 1 kOhms @ 100 MHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ACM4532-102-3P-T001 | ACM4532-601-2P-T001 | ACM4532-801-2P-T001 | ACMP-9050-102-T |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | Abracon LLC |
| RoHS Status | ROHS3 Compliant | |||
| Description | CMC 200MA 3LN 1K OHM SMD | CMC 1.5A 2LN 600 OHM SMD | CMC 1A 2LN 800 OHM SMD | CMC 4A 2LN 1K OHM SMD |
| Series | ACM | ACM | ACM | ACMP-9050 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
