ACS711EEXLT-31AB-T

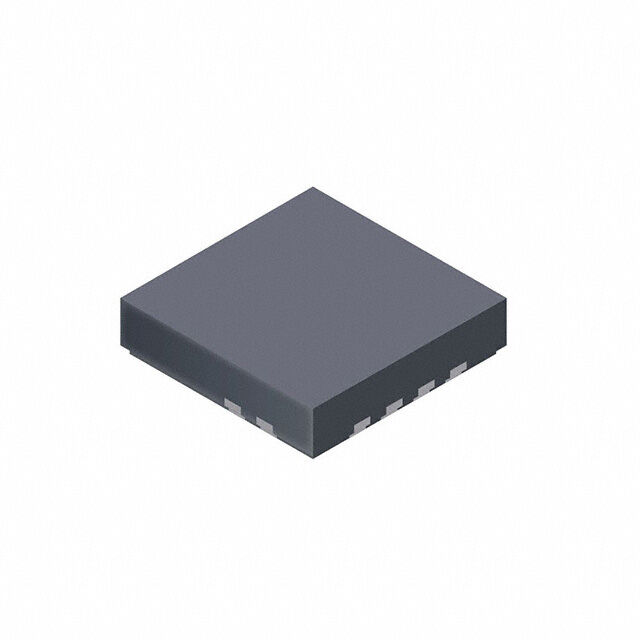

lmages are for reference only.ACS711EEXLT-31AB-T
SENSOR CURRENT HALL 31A AC/DC
Datasheet12-PowerWFQFN
25,518 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Current Sensor 31A 1 Channel Hall Effect, Open Loop Bidirectional 12-PowerWFQFN
ACS711EEXLT-31AB-T
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | Allegro MicroSystems |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect, Open Loop |
| Current - Sensing | 31A |
| Number of Channels | 1 |
| Output | Ratiometric, Voltage |
| Sensitivity | 45mV/A |
| Frequency | DC ~ 100kHz |
| Linearity | ±1% |
| Accuracy | ±5% |
| Voltage - Supply | 3V ~ 5.5V |
| Response Time | 4.6µs |
| Current - Supply (Max) | 5.5mA |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bidirectional |
| Mounting Type | Surface Mount |
| Package / Case | 12-PowerWFQFN |
| Supplier Device Package | 12-QFN (3x3) |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ACS711EEXLT-15AB-T | ACS37002KMABTR-050B3 | ACS37002KMABTR-050B5 | ACS37002KMABTR-050B5-M |
| Manufacturer | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | SENSOR CURRENT HALL 15.5A AC/DC | 400KHZ 1% ACCURACY 4.8KV ISOL | 400KHZ 1% ACCURACY 4.8KV ISOL | 400KHZ CURRENT SENSOR WITH VREF |
| Series | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
