ACS754LCB-100-PSF
lmages are for reference only.ACS754LCB-100-PSF
SENSOR CURRENT HALL 100A AC/DC
Datasheet5-CB Formed Leads, PSF
67,853 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Current Sensor 100A 1 Channel Hall Effect, Open Loop Bidirectional 5-CB Formed Leads, PSF
ACS754LCB-100-PSF
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | Allegro MicroSystems |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect, Open Loop |
| Current - Sensing | 100A |
| Number of Channels | 1 |
| Output | Ratiometric, Voltage |
| Sensitivity | 20mV/A |
| Frequency | DC ~ 35kHz |
| Linearity | ±1.5% |
| Accuracy | ±1% |
| Voltage - Supply | 5V |
| Response Time | 11µs |
| Current - Supply (Max) | 10mA |
| Operating Temperature | -40°C ~ 150°C |
| Polarization | Bidirectional |
| Mounting Type | Through Hole |
| Package / Case | 5-CB Formed Leads, PSF |
| Supplier Device Package | 5-CB Module |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ACS754LCB-100-PFF | ACS754LCB-130-PFF | ACS754LCB-130-PSF | ACS754LCB-050-PFF |
| Manufacturer | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems |

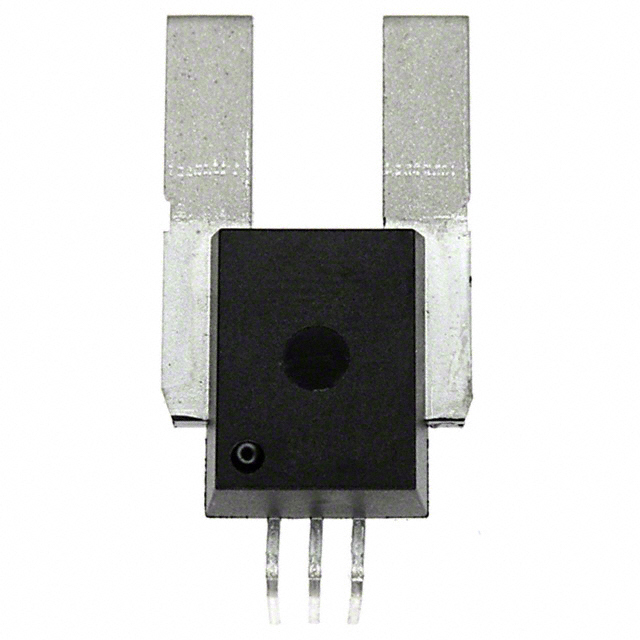

| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | SENSOR CURRENT HALL 100A AC/DC | SENSOR CURRENT HALL 130A AC/DC | SENSOR CURRENT HALL 130A AC/DC | SENSOR CURRENT HALL 50A AC/DC |
| Series | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems |
| Packaging | Tube | Tube | Tray | Tube |
