ACS754SCB-130-PFF
lmages are for reference only.ACS754SCB-130-PFF
SENSOR CURRENT HALL 130A AC/DC
Datasheet5-CB Formed Leads, PFF
103,715 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Current Sensor 130A 1 Channel Hall Effect, Open Loop Bidirectional 5-CB Formed Leads, PFF
ACS754SCB-130-PFF
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | Allegro MicroSystems |
| Series | - |
| Packaging | Tray |
| RoHS Status | RoHS non-compliant |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect, Open Loop |
| Current - Sensing | 130A |
| Number of Channels | 1 |
| Output | Ratiometric, Voltage |
| Sensitivity | 15mV/A |
| Frequency | DC ~ 35kHz |
| Linearity | ±0.8% |
| Accuracy | ±1% |
| Voltage - Supply | 5V |
| Response Time | 11µs |
| Current - Supply (Max) | 10mA |
| Operating Temperature | -20°C ~ 85°C |
| Polarization | Bidirectional |
| Mounting Type | Through Hole |
| Package / Case | 5-CB Formed Leads, PFF |
| Supplier Device Package | 5-CB Module |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

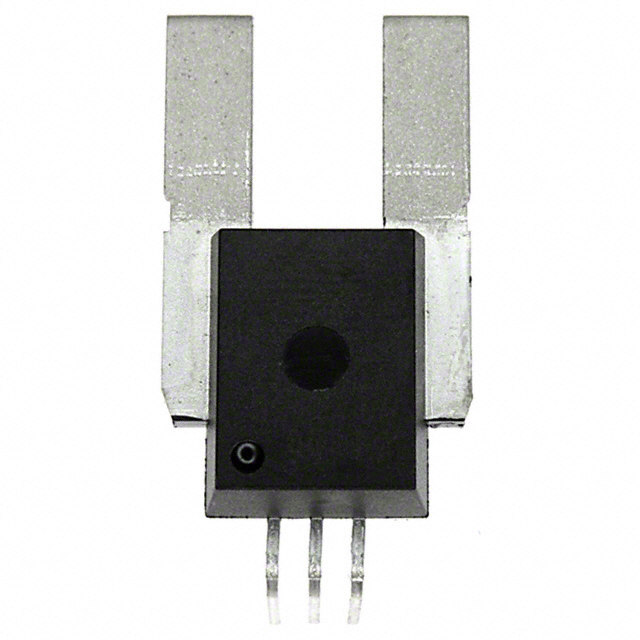

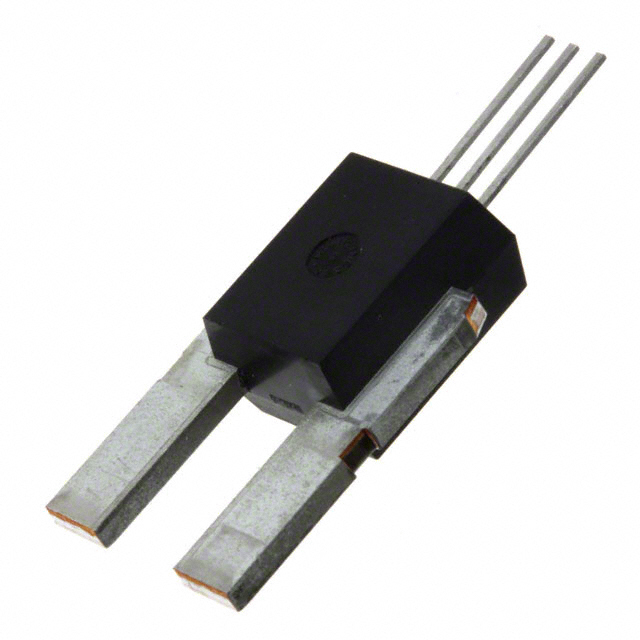

| Part Number | ACS754SCB-130-PSF | ACS754SCB-100-PFF | ACS754SCB-150-PSF | ACS754SCB-150-PSS |
| Manufacturer | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant |
| Description | SENSOR CURRENT HALL 130A AC/DC | SENSOR CURRENT HALL 100A AC/DC | SENSOR CURRENT HALL 150A AC/DC | SENSOR CURRENT HALL 150A AC/DC |
| Series | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems |
| Packaging | Tray | Tray | Tray | Tray |
