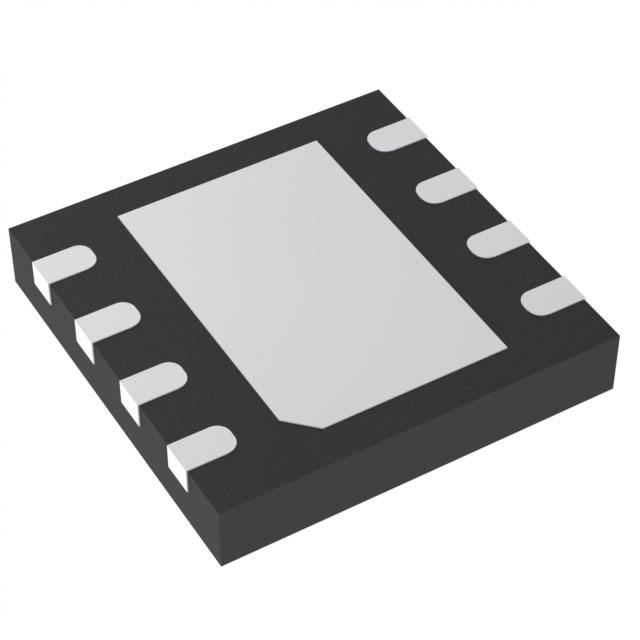

ADM7150ACPZ-1.8-R2
lmages are for reference only.ADM7150ACPZ-1.8-R2
IC REG LINEAR 1.8V 800MA 8LFCSP
Datasheet8-WFDFN Exposed Pad, CSP
72,675 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 800mA 8-LFCSP-WD (3x3)
ADM7150ACPZ-1.8-R2
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 1.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 800mA |
| Current - Quiescent (Iq) | 7 mA |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad, CSP |
| Supplier Device Package | 8-LFCSP-WD (3x3) |
| Base Product Number | ADM7150 |
| Current - Supply (Max) | 12 mA |
| Product Attribute |  |
 |
 |
 |
| Part Number | ADM7150ACPZ-1.8-R7 | ADM7150ACPZ-3.3-R2 | ADM7150ACPZ-3.3-R7 | ADM7150ACPZ-4.5-R2 |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR 1.8V 800MA 8LFCSP | IC REG LINEAR 3.3V 800MA 8LFCSP | IC REG LINEAR 3.3V 800MA 8LFCSP | IC REG LINEAR 4.5V 800MA 8LFCSP |
| Series | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
