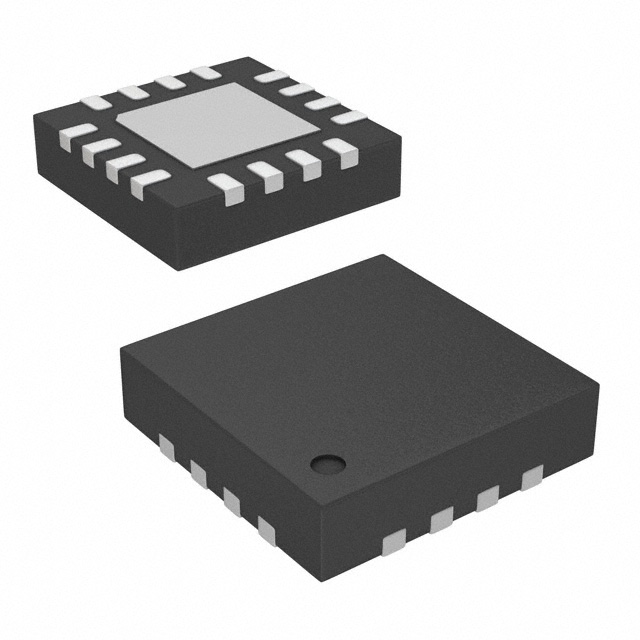

ADP1763WACPZ-1.2-R7
lmages are for reference only.ADP1763WACPZ-1.2-R7
3ALOWVIN, VERYLOW DO LOW NOISE,H
Datasheet16-WFQFN Exposed Pad, CSP
25,441 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 3A 16-LFCSP (3x3)
ADP1763WACPZ-1.2-R7
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 1.98V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.145V @ 3A |
| Current - Output | 3A |
| Current - Quiescent (Iq) | 8 mA |
| PSRR | - |
| Control Features | Enable, Power Good, Soft Start |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP (3x3) |
| Base Product Number | ADP1763 |
| Current - Supply (Max) | 16 mA |
| Product Attribute |  |
 |
 |
 |
| Part Number | ADP1763WACPZ-0.9-R7 | ADP1763WACPZ-1.0-R7 | ADP1763WACPZ-1.1-R7 | ADP1763WACPZ-1.3-R7 |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 3ALOWVIN, VERYLOW DO LOW NOISE,H | 3ALOWVIN, VERYLOW DO LOW NOISE,H | 3ALOWVIN, VERYLOW DO LOW NOISE,H | 3ALOWVIN, VERYLOW DO LOW NOISE,H |
| Series | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
