AEE01H48-M
lmages are for reference only.AEE01H48-M
DC DC CONVERTER 24V 15W
Datasheet5-DIP Module, 4 Leads
40,358 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 24V 625mA 36V - 75V Input
AEE01H48-M
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ARTESYN / Advanced Energy |
| Series | AEE15W-M (15W) |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 625mA |
| Power (Watts) | 15 W |
| Applications | ITE (Commercial), Medical |
| Features | OCP, OVP, SCP |
| Operating Temperature | -40°C ~ 80°C (With Derating) |
| Efficiency | 88% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 5-DIP Module, 4 Leads |
| Size / Dimension | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 12.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | AEE01H |
| Voltage - Isolation | 4.2 kV |
| Product Attribute |  |
 |
 |
 |

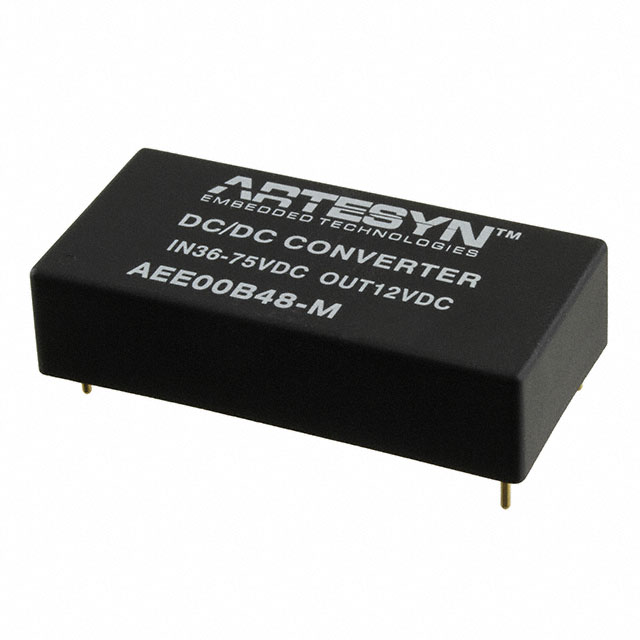

| Part Number | AEE00B12-M | AEE00B24-M | AEE00B48-M | AEE00BB18-L |
| Manufacturer | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | DC DC CONVERTER 12V 10W | DC DC CONVERTER 12V 10W | DC DC CONVERTER 12V 10W | DC DC CONVERTER +/-12V 15W |
| Series | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| Packaging | Tube | Tube | Tube | Tube |
