AFGHL40T120RHD
Manufacturer
onsemiDescription
1200V/40A FSII IGBT TO247 AUTOMO
Datasheet
DatasheetPackage
TO-247-3
In Stock
64,036 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

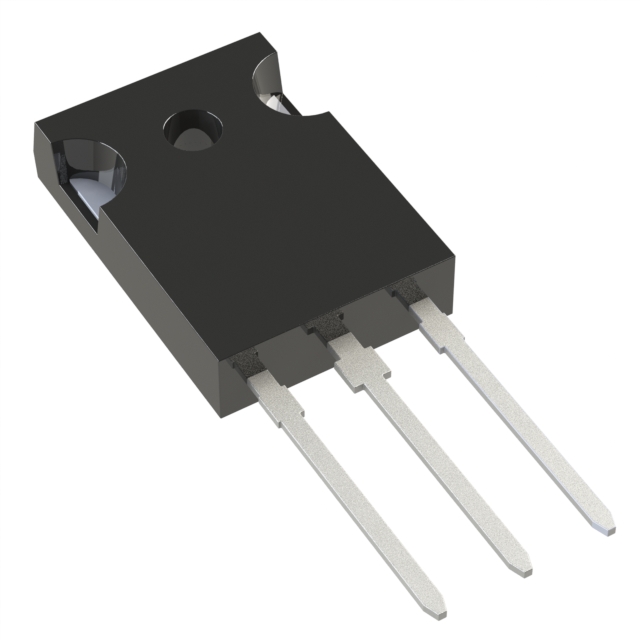

AFGHL40T120RHD
AFGHL40T120RHD
lmages are for reference only.Payment Methods
Delivery Services
IGBT Trench Field Stop 1200 V 48 A 400 W Through Hole TO-247-3
Quick Inquiry
AFGHL40T120RHD
Specifications
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 48 A |
| Current - Collector Pulsed (Icm) | 160 A |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 40A |
| Power - Max | 400 W |
| Switching Energy | 3.7mJ (on), 1.2mJ (off) |
| Input Type | Standard |
| Gate Charge | 277 nC |
| Td (on/off) @ 25°C | 37ns/150ns |
| Test Condition | 600V, 40A, 5Ohm, 15V |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247-3 |
| Reverse Recovery Time (trr) | 195 ns |
| Base Product Number | AFGHL40 |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |
| Part Number | AFGHL40T120RH | AFGHL40T120RL | AFGHL40T120RLD | AFGHL40T120RW |
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 1200V/40A FSII IGBT (NO FRD) TO2 | 1200V/40A FSII IGBT LOW VCESAT ( | 1200V/40A FSII IGBT LOW VCESAT T | FS7 1200V 40A SCR IGBT STAND-ALO |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
