Isolated Module DC DC Converter 1 Output 1000V 10mA 0V - 12V Input
AHVR12V1KV10MAP
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Analog Technologies |
| Series | - |
| Packaging | Tape & Box (TB) |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 0V |
| Voltage - Input (Max) | 12V |
| Voltage - Output 1 | 1000V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 10mA |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | Adjustable Output |
| Operating Temperature | -10°C ~ 70°C |
| Efficiency | 70% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 4-DIP Module |
| Size / Dimension | 2.80" L x 1.70" W x 0.85" H (71.1mm x 43.2mm x 21.6mm) |
| Supplier Device Package | 4-DIP Module |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | 3.5 kV |
| Product Attribute |  |
 |
 |
 |

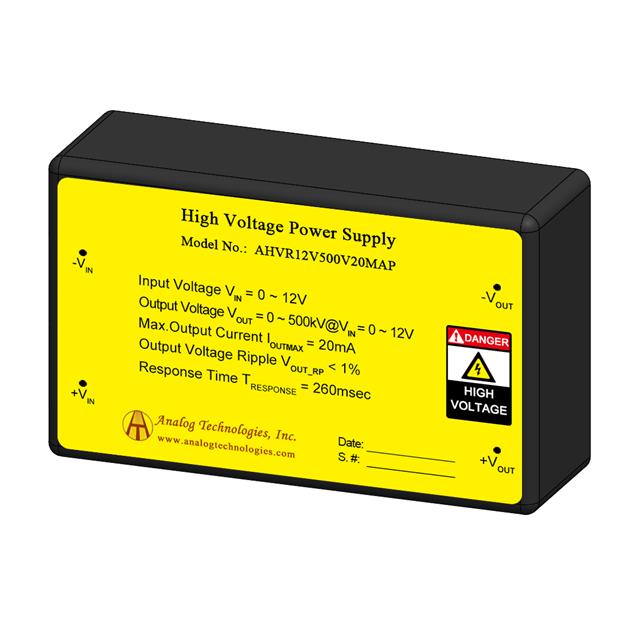

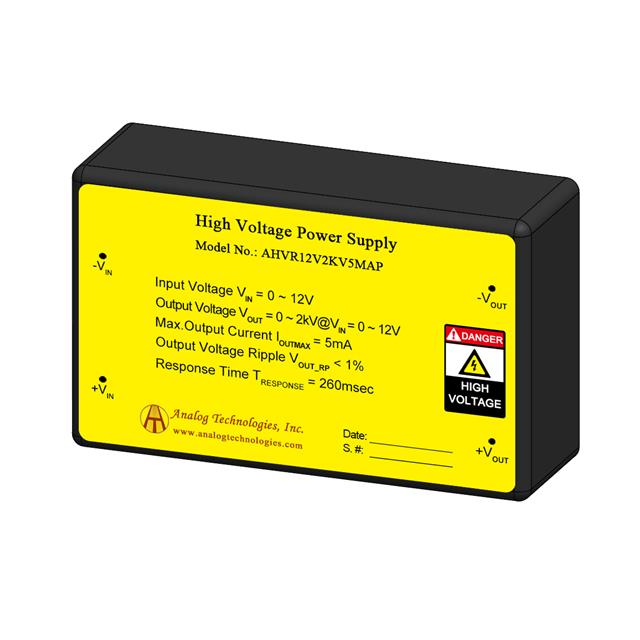

| Part Number | AHVR12V2KV5MAP | AHVR12V500V20MAP | AHVR15V3KV3R3MAP | AHVR15V4KV2R5MAP |
