AK1E-076C

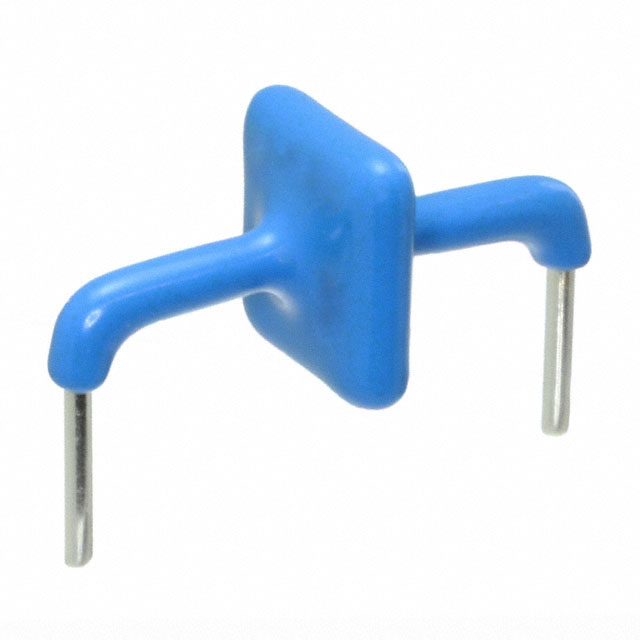

lmages are for reference only.AK1E-076C
TVS DIODE 76VWM 140VC AXIAL
DatasheetAxial, Right Angle Bend (24.15mm Center)
10,097 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
140V Clamp 1000A (1kA) (8/20µs) Ipp Tvs Diode Through Hole Axial
AK1E-076C
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Eaton - Electronics Division |
| Series | AK1E |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 76V |
| Voltage - Breakdown (Min) | 85V |
| Voltage - Clamping (Max) @ Ipp | 140V |
| Current - Peak Pulse (10/1000µs) | 1000A (1kA) (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | Telecom |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | Axial, Right Angle Bend (24.15mm Center) |
| Supplier Device Package | Axial |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
 |
 |
| Part Number | AK1-076C | AK1-076C-12 | AK1-076C-BP | AK1-076C-Y |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Micro Commercial Co | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 76VWM 140VC AK | TVS DIODE 76VWM 140VC AXIAL | Interface | TVS DIODE 76VWM 140VC AXIAL |
| Series | Littelfuse Inc. | Littelfuse Inc. | Micro Commercial Co | Littelfuse Inc. |
| Packaging | Tray | Bulk | Bulk | Bulk |
