AK6E-066C

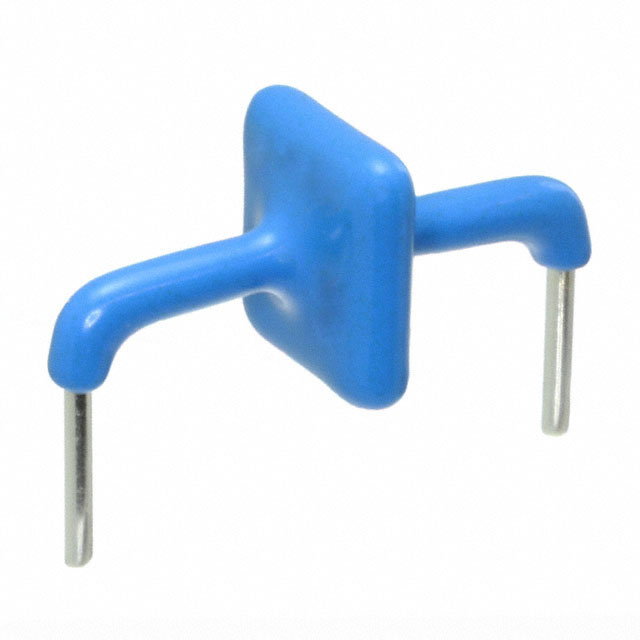

lmages are for reference only.AK6E-066C
TVS DIODE 66VWM 120VC AXIAL
DatasheetAxial, Right Angle Bend (24.15mm Center)
63,846 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
120V Clamp 6000A (6kA) (8/20µs) Ipp Tvs Diode Through Hole Axial
AK6E-066C
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Eaton - Electronics Division |
| Series | AK6E |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 66V |
| Voltage - Breakdown (Min) | 72V |
| Voltage - Clamping (Max) @ Ipp | 120V |
| Current - Peak Pulse (10/1000µs) | 6000A (6kA) (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | Telecom |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | Axial, Right Angle Bend (24.15mm Center) |
| Supplier Device Package | Axial |
| Base Product Number | AK6E |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AK6E-015C | AK6E-020C | AK6E-025C | AK6E-030C |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | TVS DIODE 15VWM 28VC AXIAL | TVS DIODE 20VWM 50VC AXIAL | TVS DIODE 25VWM 60VC AXIAL | TVS DIODE 30VWM 90VC AXIAL |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Bulk | Bulk | Bulk | Bulk |
